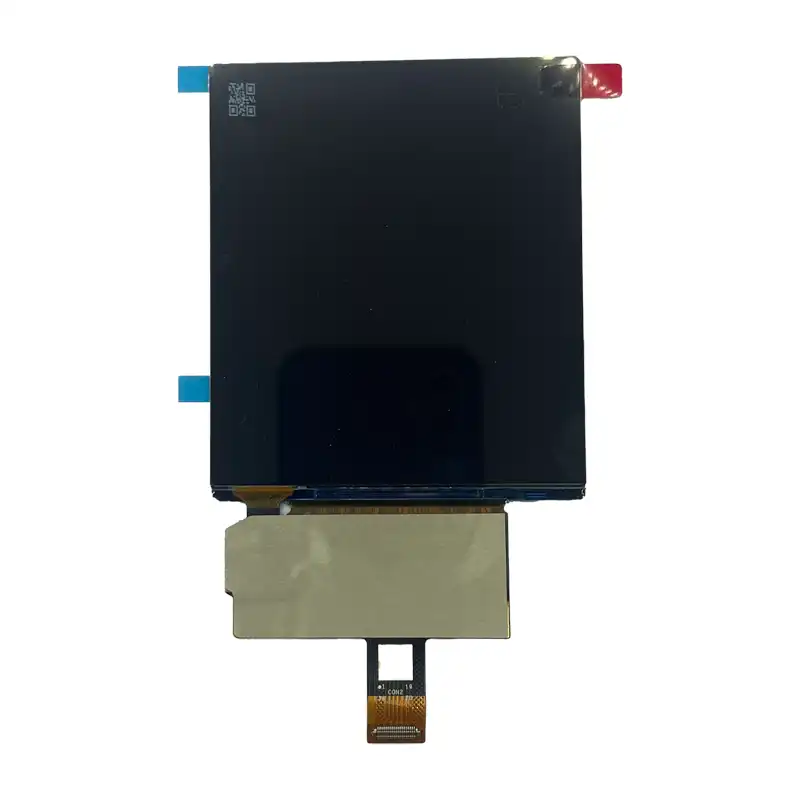

3.92″ AMOLED Display, 1080×1240, MIPI

Name: 3.92″ AMOLED Display, 1080×1240, MIPI
Brand: REISSOPTO
SKU: P2.5-Indoor
Availability: InStock

Display Size: 3.92 inch (Diagonal)

Resolution: 1080 (Horizontal) × 1240 (Vertical)

Panel Type: LTPS AMOLED

Interface: MIPI 4-Lane

Brightness: 500 nits (Typ) / 550 nits (Max)

Touch Panel: On-Cell Capacitive Support

Thickness: Ultra-thin 0.8mm

ReissOpto introduces the BR1392FH101GG-013, a high-performance 3.92-inch OLED Display engineered for premium smart devices. Featuring a nearly square aspect ratio and high pixel density, this LTPS module delivers exceptional clarity and color depth. It is the ideal visual interface for smart home control panels, industrial handhelds, and advanced medical equipment.

Get a quote Set OEM

CUSTOM OLED DISPLAY Details

What Is an AMOLED OLED Display?

An AMOLED (Active Matrix Organic Light Emitting Diode) OLED Display represents the pinnacle of screen technology. Unlike LCDs, which rely on a backlight, every pixel in an OLED panel is self-emissive. This allows for individual pixel control, resulting in "true blacks," infinite contrast ratios, and significantly faster response times. For compact devices, this means vibrant visuals and lower power consumption when displaying dark interfaces.

High-Definition Visual Experience

1080x1240 Resolution with High Pixel Density

This OLED Display packs a resolution of 1080x1240 into a compact 3.92-inch active area. The result is an incredibly sharp image with high pixel density (PPI), ensuring that text, icons, and complex graphics appear crisp and smooth, free from visible pixelation.

Superior Color and Contrast

Self-Emissive Technology for True Blacks

With a luminance of up to 550 nits and the inherent infinite contrast of OLED technology, this module delivers deep blacks and vibrant colors. The chromaticity coordinates are tuned for a wide color gamut, making it suitable for applications requiring high color accuracy.

High-Speed Data Transmission

MIPI 4-Lane Interface

Powered by the CH13726A driver IC, the display utilizes a MIPI 4-Lane interface. This provides high bandwidth data transmission to support the high resolution (1080x1240) at a smooth 60Hz frame rate, ensuring fluid animations and responsive user interfaces.

Integrated Touch Capabilities

On-Cell Touch Sensor Structure

The module supports an On-Cell touch structure (utilizing FT3519 or compatible ICs). This integration allows for a thinner stack-up compared to external touch panels, maintaining the sleek 0.8mm profile while offering precise multi-touch interaction.

Robust Environmental Reliability

Wide Operating Temperature Range

Designed for versatility, this OLED Display operates reliably in temperatures ranging from -20℃ to +70℃. Whether used in outdoor handhelds or industrial environments, the screen maintains its performance and longevity.

Why Choose ReissOpto for Your OLED Projects?

Expert Engineering
ReissOpto leverages years of experience in LTPS AMOLED manufacturing. Our modules are designed to meet strict industrial standards, ensuring stable performance and high yield rates.

Comprehensive Quality Assurance
We implement rigorous testing protocols, including high/low-temperature storage (-40℃ to +80℃), thermal shock cycling, and ESD testing. Our visual inspection standards ensure that every OLED Display shipped meets Class A quality levels.

Flexible Customization
We understand that every project is unique. ReissOpto offers customization for FPC shape, interface definition, and cover lens design to perfectly integrate with your device's mechanical housing.

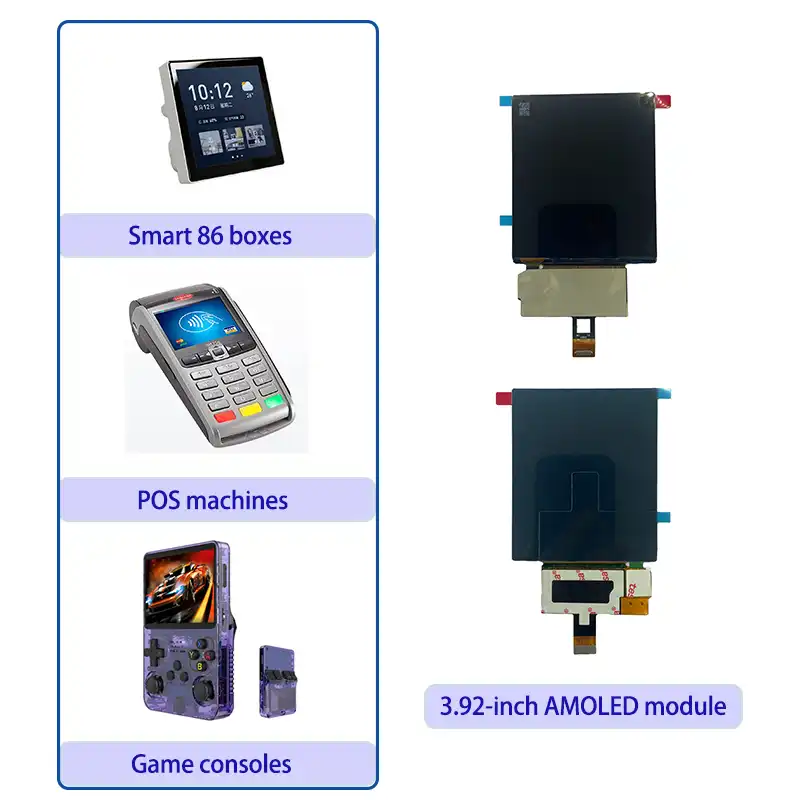

Application Scenarios

Smart Home Thermostats & Controllers
The unique 1080x1240 aspect ratio is perfect for wall-mounted smart knobs and control panels, offering a premium look that blends into modern interiors.

Industrial Handheld Devices
With its wide operating temperature and high contrast, this OLED Display is ideal for portable scanners, meters, and remote controls used in varied lighting conditions.

Medical Monitoring Devices
The high resolution and true black levels allow for precise rendering of medical waveforms and data, essential for portable diagnostic tools.

Wearable Technology
The ultra-thin 0.8mm profile and lightweight design make it suitable for larger wearable devices or wrist-mounted computers.

OLED Display Technical Specifications

Below are the detailed technical parameters for the ReissOpto 3.92-inch AMOLED module (Product No: BR1392FH101GG-013).

Item	Specification	Remark
Display Type	3.92 inch AMOLED	LTPS
Resolution	1080 (H) × 1240 (V)	High Density
Interface	MIPI 4-Lane	High Speed
Driver IC	CH13726A	-
Touch Structure	On-Cell	1T1R Trace Mode
Module Dimensions	67.25 (W) × 79.87 (H) × 0.8 (D) mm	Ultra-thin
Active Area	65.448 (W) × 75.144 (H) mm	-
Pixel Pitch	60.6 × 60.6 um	-
Brightness	500 nits (Typ) / 550 nits (Max)	-
Color Depth	16.7M Colors	-
Operating Temp	-20℃ to +70℃	-
Storage Temp	-40℃ to +80℃	-
Pin Count	38 Pins	Main FPC

Frequently Asked Questions (FAQ)

Q1: What is the benefit of the MIPI 4-Lane interface on this OLED Display?
A1: The MIPI 4-Lane interface provides higher bandwidth than 1 or 2-lane alternatives. This is necessary to drive the high resolution (1080x1240) of this 3.92-inch screen smoothly at 60Hz without lag or tearing.

Q2: Does this display perform well in sunlight?
A2: Yes. With a maximum brightness of 550 nits and the high contrast ratio inherent to OLED Display technology, the screen remains readable in various lighting conditions, including outdoor environments.

Q3: Is the touch panel integrated?
A3: This module is designed with an On-Cell touch sensor structure. It supports capacitive touch functionality, allowing for a thinner and more integrated display solution compared to external touch panels.

Q4: What is the lifespan of the AMOLED panel?
A4: The module is designed for long-term reliability. We conduct extensive reliability testing, including 120 hours of high-temperature operation at 70℃, to ensure durability for consumer and industrial applications.

Q5: Can ReissOpto customize the FPC for my device?
A5: Absolutely. We offer OEM/ODM services and can modify the Flexible Printed Circuit (FPC) layout and shape to fit the specific mechanical constraints of your product.
