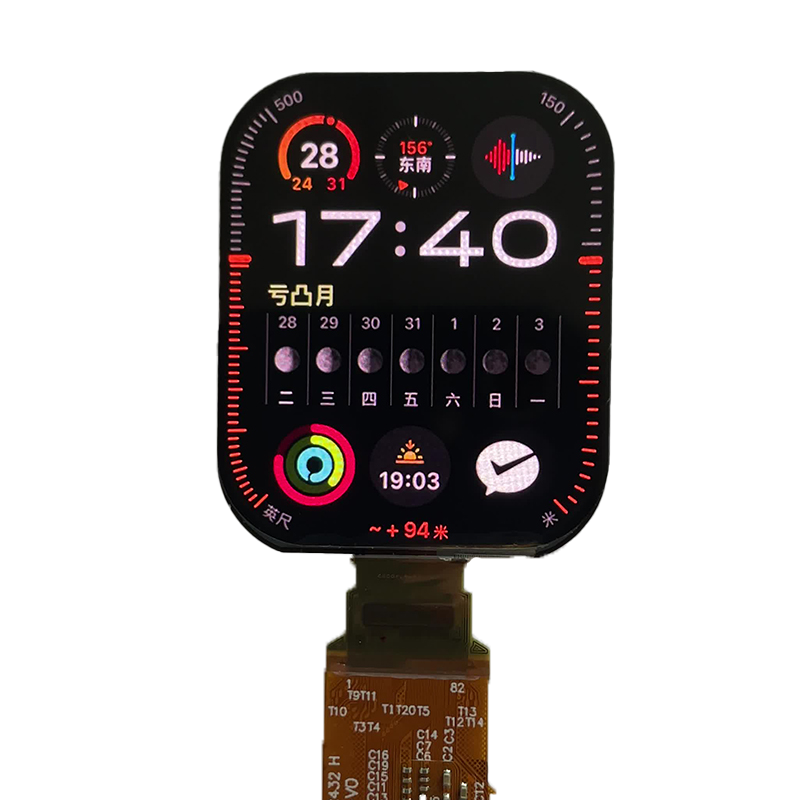

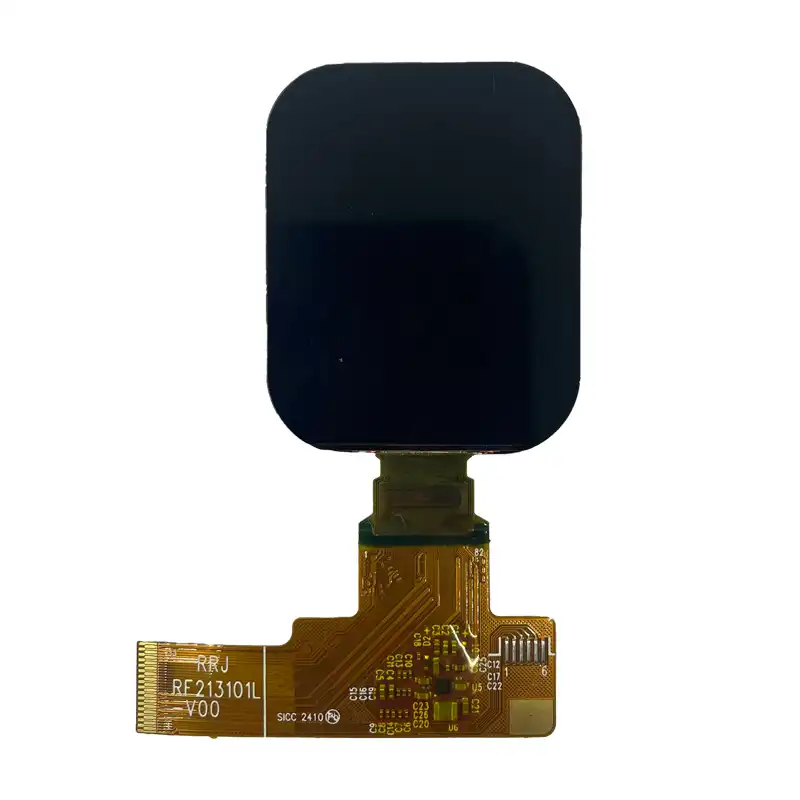

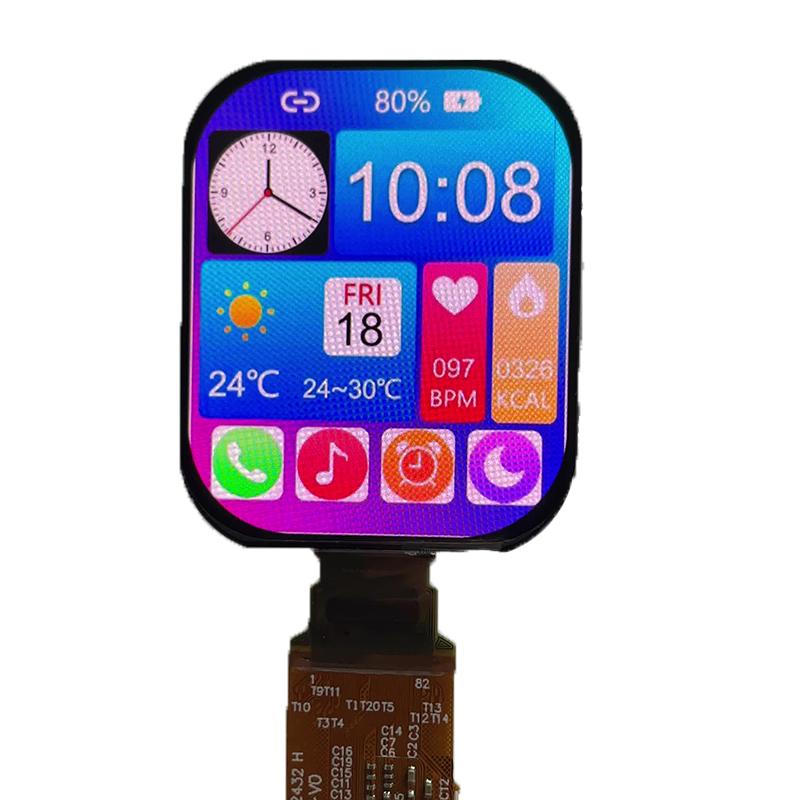

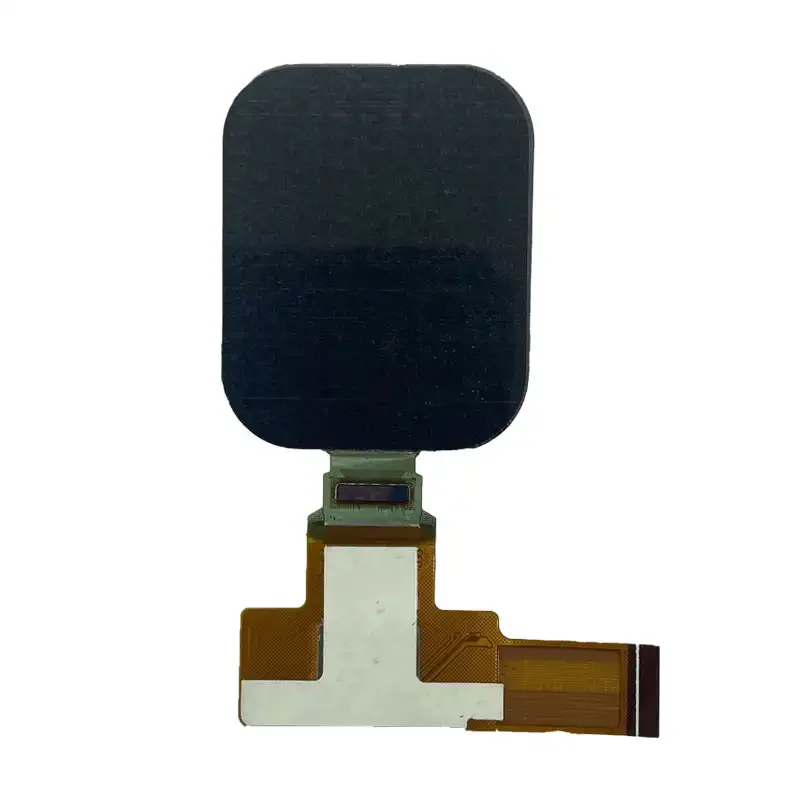

2.06 Inch AMOLED Module 410*502 MIPI/QSPI Interface

Name: 2.06 Inch AMOLED Module 410*502 MIPI/QSPI Interface
Brand: REISSOPTO
SKU: P2.5-Indoor
Availability: InStock

2.06-Inch AMOLED Module

Resolution: 410 × 502 pixels
Display Mode: AMOLED
Interface: MIPI / QSPI / 4-Wire SPI
Brightness: 600 nits (Typ)
Driver IC: CO5300

As a leading display solutions provider, ReissOpto offers this high-performance 2.06-inch AMOLED module designed for precision and clarity. With its ultra-thin profile and versatile interface options, it is the perfect visual solution for smartwatches, medical instruments, and industrial control panels.

[Get a Quote] [Set OEM]

Get a quote Set OEM

CUSTOM OLED DISPLAY Details

What Is an AMOLED Module?

An AMOLED (Active Matrix Organic Light Emitting Diode) module is a display technology where each pixel illuminates individually. Unlike traditional LCDs, this OLED Display requires no backlight, resulting in true blacks, higher contrast ratios, and significantly thinner form factors. It delivers superior color accuracy and faster response times for dynamic content.

High-Resolution Visuals — 410x502 Pixel Density

Ultra-High Pixel Density in a Tiny 2.06" Form Factor

Despite its compact 2.06-inch size, this module packs a resolution of 410x502. This high pixel density delivers razor-sharp text and detailed graphics, making it ideal for devices that require complex UI elements in a small footprint.

High-Resolution Visuals — 410x502 Pixel Density

Superior Brightness and Contrast — 600 Nits & 60,000:1 Ratio

Brilliant Clarity: 600 Nits Brightness & 60,000:1 Contrast

With a typical luminance of 600 nits and a contrast ratio of 60,000:1, this OLED display offers excellent readability even under bright ambient light. The self-emissive pixels ensure deep blacks and vibrant colors (16.7M) that pop off the screen.

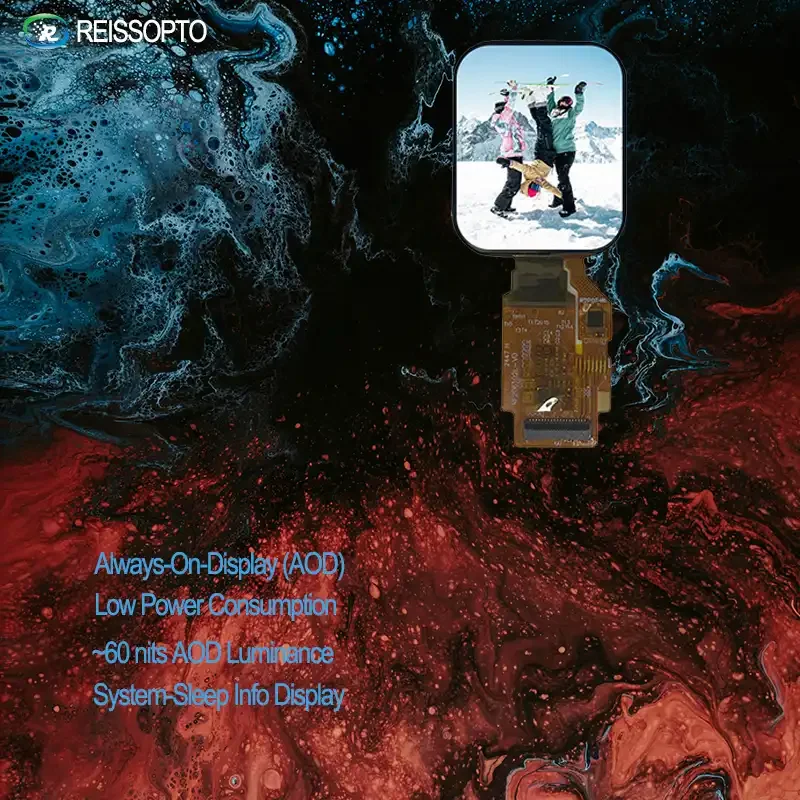

Versatile Interface Support — MIPI, QSPI, and SPI

Flexible Connectivity: MIPI, QSPI & SPI Support

Flexibility is key for hardware integration. This module supports multiple interface standards including MIPI, QSPI, and 4-Wire SPI, allowing seamless compatibility with a wide range of microcontrollers and processors used in wearable tech.

Versatile Interface Support — MIPI, QSPI, and SPI

Ultra-Thin Mechanical Design — 0.80mm Thickness

Slimmer Than Ever: Just 0.80mm Thick

Engineered for modern, sleek devices, the module features an incredibly thin profile of just 0.80mm. This space-saving design allows engineers to include larger batteries or additional sensors in their device housing without increasing bulk.

Wide Operating Temperature — Reliable in Extreme Conditions

Rugged Performance: -20°C to 70°C Operating Range

Built to perform in various environments, this display operates effectively between -20°C and 70°C. Whether used in outdoor sports watches or industrial meters, it maintains consistent performance across a broad temperature range.

Wide Operating Temperature — Reliable in Extreme Conditions

Why Choose ReissOpto for Your OLED Projects?

Expert Engineering
ReissOpto leverages years of experience in LTPS AMOLED manufacturing. Our modules are designed to meet strict industrial standards, ensuring stable performance and high yield rates.

Comprehensive Quality Assurance
We implement rigorous testing protocols, including high/low-temperature storage (-40℃ to +80℃), thermal shock cycling, and ESD testing. Our visual inspection standards ensure that every OLED Display shipped meets Class A quality levels.

Flexible Customization
We understand that every project is unique. ReissOpto offers customization for FPC shape, interface definition, and cover lens design to perfectly integrate with your device's mechanical housing.

Technical Specifications

ReissOpto OLED displays are manufactured to meet rigorous industrial standards. Below are the detailed specifications for the 2.06-inch module.

Display Size (Diagonal): 2.06 inch
Display Mode: AMOLED
Resolution: 410 x 502
Module Dimensions: 34.787(H) × 43.135(V) × 0.80(T) mm
Active Area: 33.087(H) × 40.511(V) mm
Driver IC: CO5300
Interface: MIPI / QSPI / 4-Wire SPI
Brightness (Luminance): 600 nits (Typ)
Contrast Ratio: 60,000:1
Display Colors: 16.7M
Operating Temperature: -20°C ～ 70°C
Storage Temperature: -30°C ～ 80°C

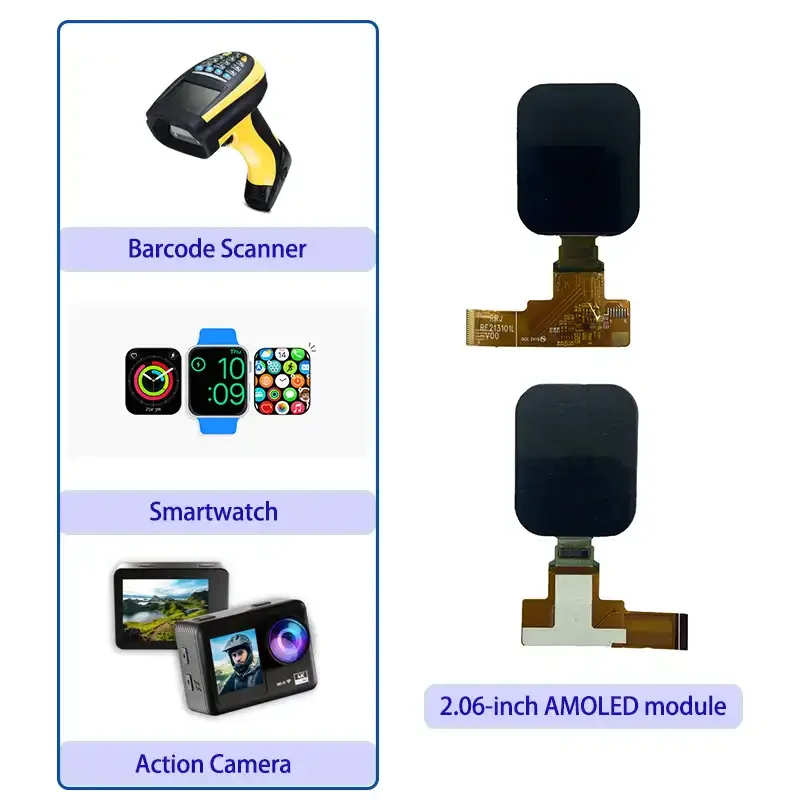

Application Scenarios

Smart Wearables & Watches
The 2.06-inch form factor is perfectly sized for next-generation smartwatches, providing a premium, high-color interface for health tracking and notifications.

Medical & Handheld Devices
High contrast and sharp resolution make this OLED display ideal for portable medical equipment where reading data accuracy is critical.

Industrial IoT Meters
With its wide operating temperature range, this module serves as a reliable interface for industrial gauges and smart home control panels.

Why Partner with ReissOpto?

Custom Engineering & Manufacturing
We design and produce display modules according to your project requirements. We can adjust FPC shape and interface definitions to fit your specific mechanical housing.

Factory-Direct Pricing
As a leading display manufacturer, we eliminate middlemen costs. You receive high-quality OLED panels at competitive prices with guaranteed performance.

Global Support & Fast Delivery
We provide complete datasheets, initialization code, and integration support to speed up your development cycle.

Frequently Asked Questions (FAQ)

Q1: What is the main advantage of this OLED display over LCD?
A1: This OLED display offers self-emissive pixels, meaning no backlight is needed. This results in perfect blacks, infinite contrast, wider viewing angles, and lower power consumption for dark themes.

Q2: Can I use this display outdoors?
A2: Yes, with a brightness of 600 nits, the display remains visible in most outdoor lighting conditions.

Q3: What interfaces does the driver CO5300 support?
A3: It supports MIPI, QSPI, and 4-Wire SPI, giving you flexibility depending on your system's bandwidth requirements.

Q4: Is the FPC customizable?
A4: Yes, ReissOpto offers customization services for the FPC (Flexible Printed Circuit) to match your motherboard's connector layout.
