Novastar A5S PLUS-N Mini Receiving Card

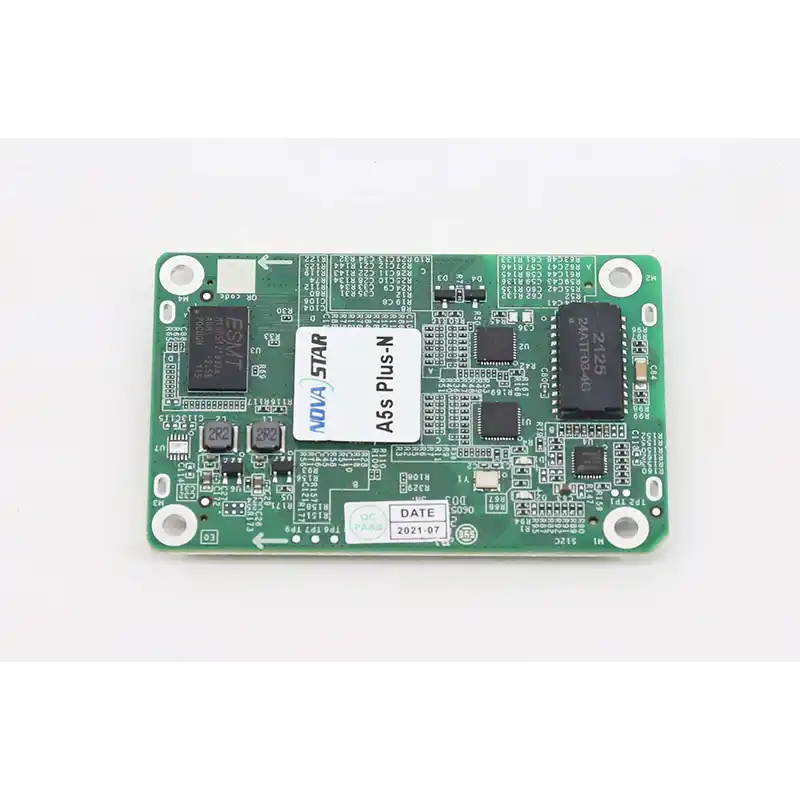

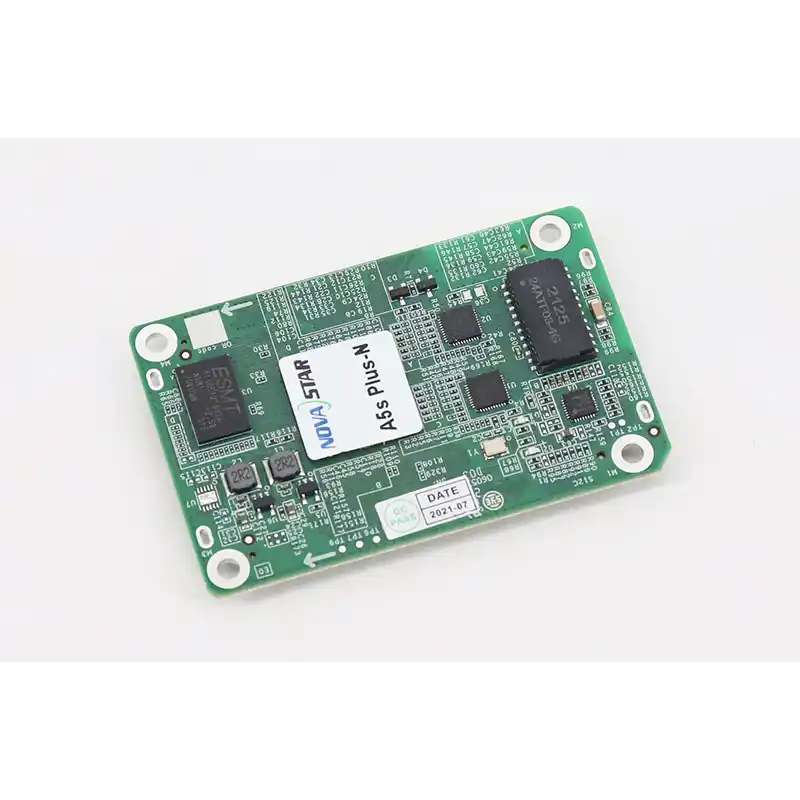

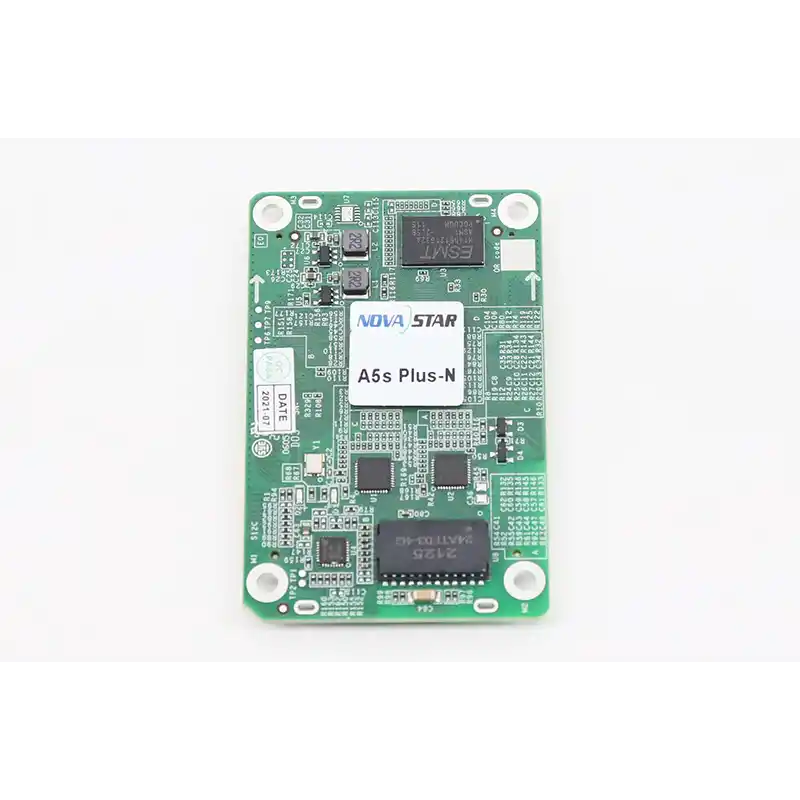

NovaStar A5S Plus-N Mini Receiving Card – Product Overview

The NovaStar A5S Plus-N is a compact, high-performance receiving card designed for fine-pitch LED displays. Supporting resolutions up to 512×384 pixels per card (requires NovaLCT V5.3.1 or later), it delivers advanced image processing capabilities that significantly enhance visual performance and user experience.

Key Features:

• Color Management: Allows seamless switching between multiple color gamuts for accurate and consistent color reproduction across the display.

• 18Bit+ Color Depth: Enhances grayscale representation by 4x, effectively reducing grayscale loss at low brightness levels and delivering smoother gradients and more natural transitions.

• Pixel-Level Brightness & Chroma Calibration: When used with NovaLCT and NovaCLB, the card enables precise calibration of each individual LED, eliminating color inconsistencies and ensuring uniform brightness and chromaticity across the entire screen.

• Quick Seam Adjustment: Corrects dark or bright lines caused by module or cabinet splicing in real time, improving overall visual continuity. This function can be applied instantly without modifying the video source (requires NovaLCT V5.2.0 or later).

• Low Latency Mode: Reduces video transmission delay to as low as 1 frame, ideal for live events and real-time broadcasting (requires modules with driver ICs that include built-in RAM).

• 3D Support: Enables stereoscopic 3D output when used with compatible sending cards or controllers, providing immersive viewing experiences.

• Individual RGB Gamma Adjustment: Offers independent adjustment of red, green, and blue Gamma curves for improved image accuracy under low grayscale conditions and better white balance control.

• Image Rotation: Supports rotation in 90° increments (0°, 90°, 180°, 270°) for flexible installation configurations.

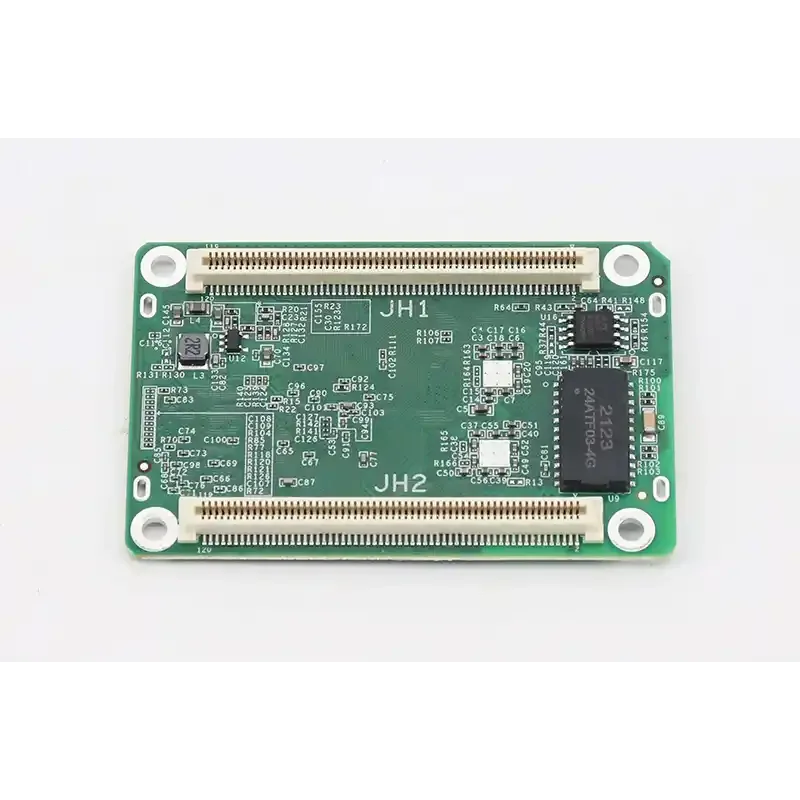

The A5S Plus-N utilizes high-density connectors to ensure reliable communication in challenging environments by minimizing the effects of dust and vibration. It supports up to 32 groups of parallel RGB data or 64 groups of serial data (expandable to 128 groups with firmware upgrades), offering scalability for larger display setups.

Designed with an EMC Class B compliant hardware layout, the A5S Plus-N ensures excellent electromagnetic compatibility, making it suitable for a wide range of indoor and outdoor applications. Its reserved pin headers also allow for custom functionality integration based on user requirements.

With its robust feature set and compact design, the A5S Plus-N is an ideal solution for high-quality LED displays in broadcast, rental staging, corporate presentations, and digital signage environments.
