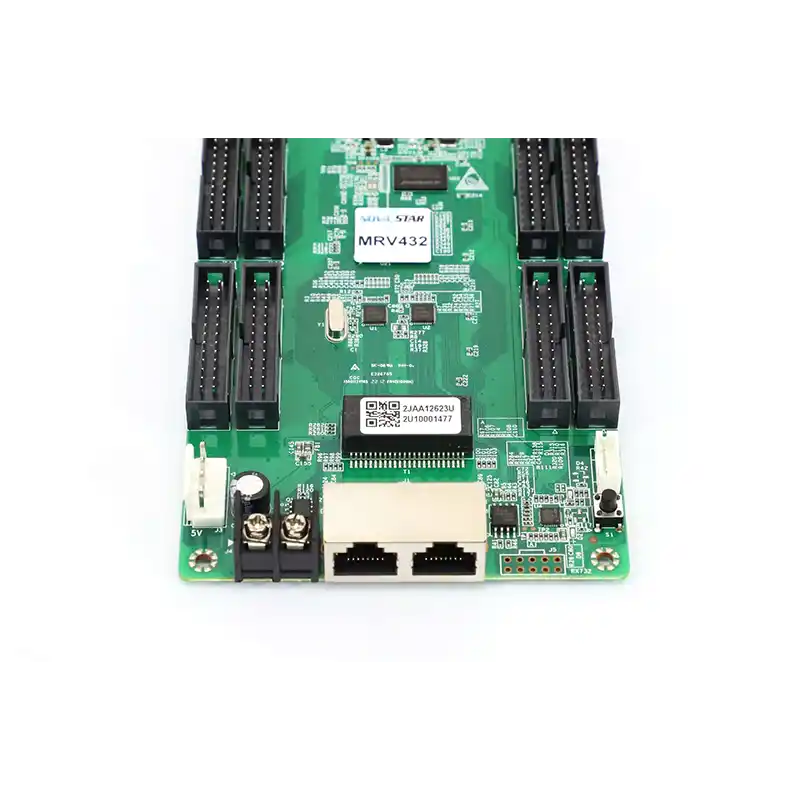

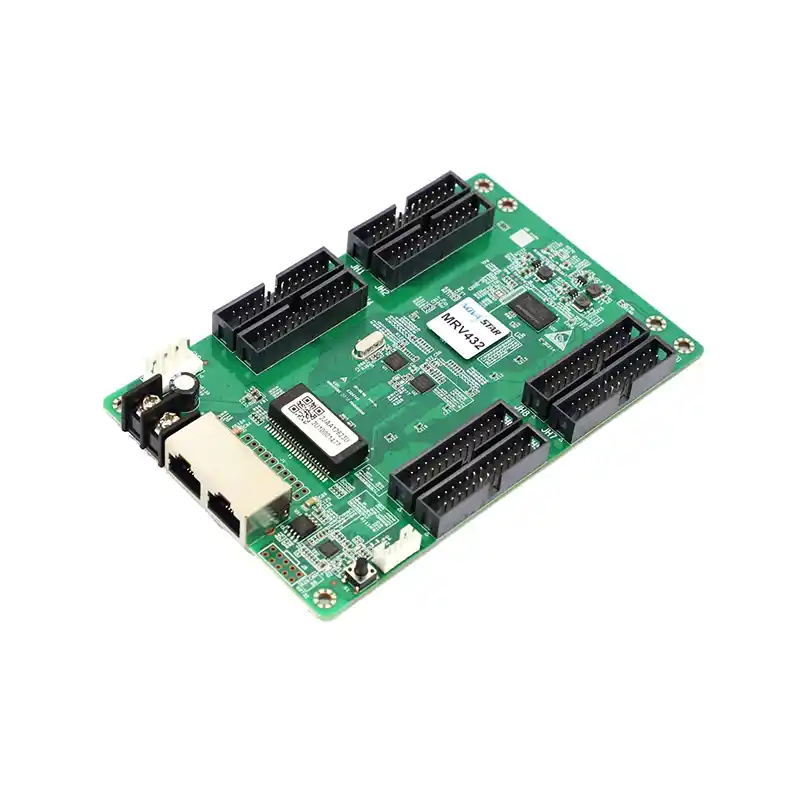

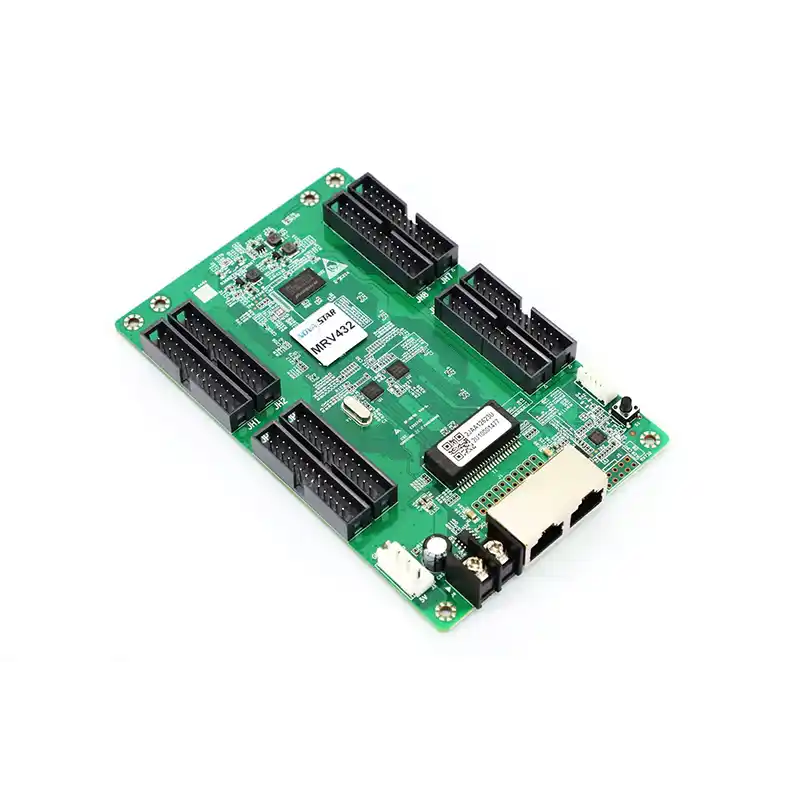

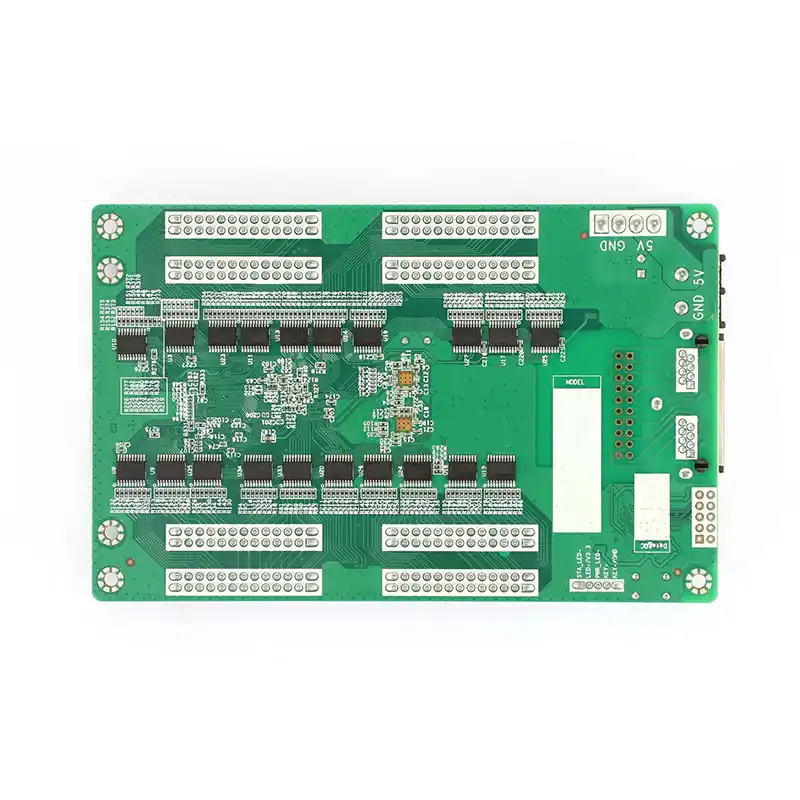

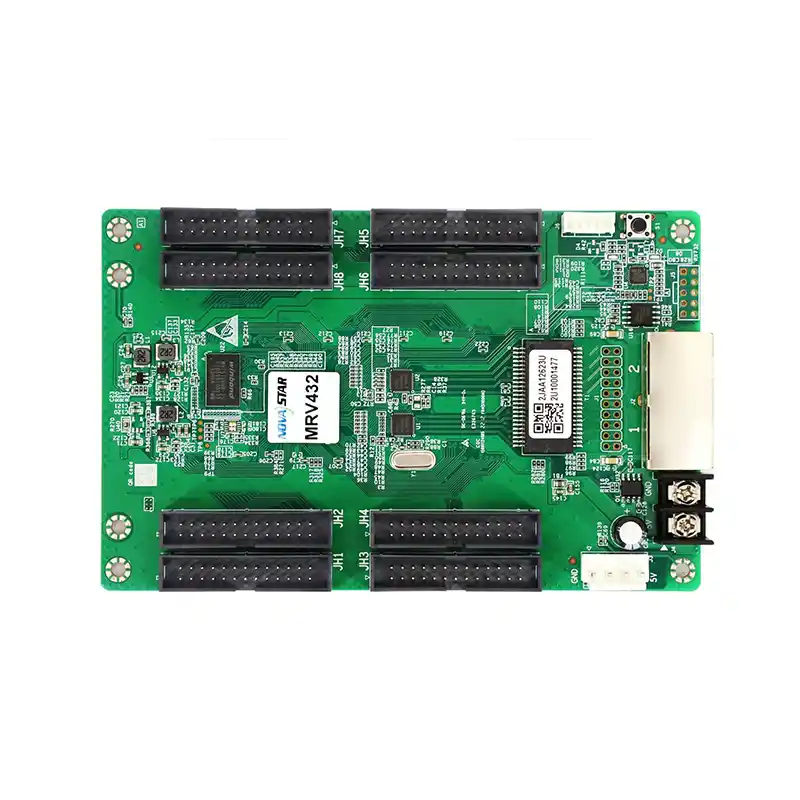

Novastar MRV432 LED Screen Receiving Card – Key Features
The Novastar MRV432 receiving card delivers advanced functionality for high-quality LED displays, offering precise control and enhanced performance. Designed for seamless integration with NovaStar systems, it ensures superior image quality, system reliability, and user-friendly operation.
Pixel-Level Calibration: Supports brightness and chroma calibration at the pixel level via NovaLCT and NovaCLB, ensuring consistent color and brightness across each LED for improved image quality.
Quick Bright/Dark Line Adjustment: Instantly corrects visual imperfections caused by module or cabinet splicing for a smoother display surface.
3D Support: Works with compatible sending cards to enable 3D output for immersive visual experiences.
Individual RGB Gamma Adjustment: Allows independent adjustment of red, green, and blue Gamma curves (requires NovaLCT V5.2.0+), improving low-grayscale uniformity and white balance accuracy.
Image Rotation: Supports display rotation in 90° increments (0°, 90°, 180°, 270°) for flexible installation.
Mapping Function: Displays receiving card number and Ethernet port information on cabinets for easy identification and topology management.
Custom Pre-Stored Image: Allows users to set a custom startup image or fallback screen when no signal is present.
Temperature & Voltage Monitoring: Built-in sensors monitor card temperature and voltage without external devices.
Cabinet LCD Display: Shows real-time data including temperature, voltage, and operating time directly on the cabinet LCD.
Bit Error Detection: Tracks communication quality and packet errors on Ethernet ports to assist in diagnosing network issues (NovaLCT V5.2.0+ required).
Firmware & Configuration Readback: Enables firmware and configuration backup to local storage for quick recovery and system replication (NovaLCT V5.2.0+ required).
With its comprehensive feature set and compatibility with NovaStar’s ecosystem, the MRV432 is ideal for high-performance narrow-pitch LED displays in rental, broadcast, and fixed installations.
