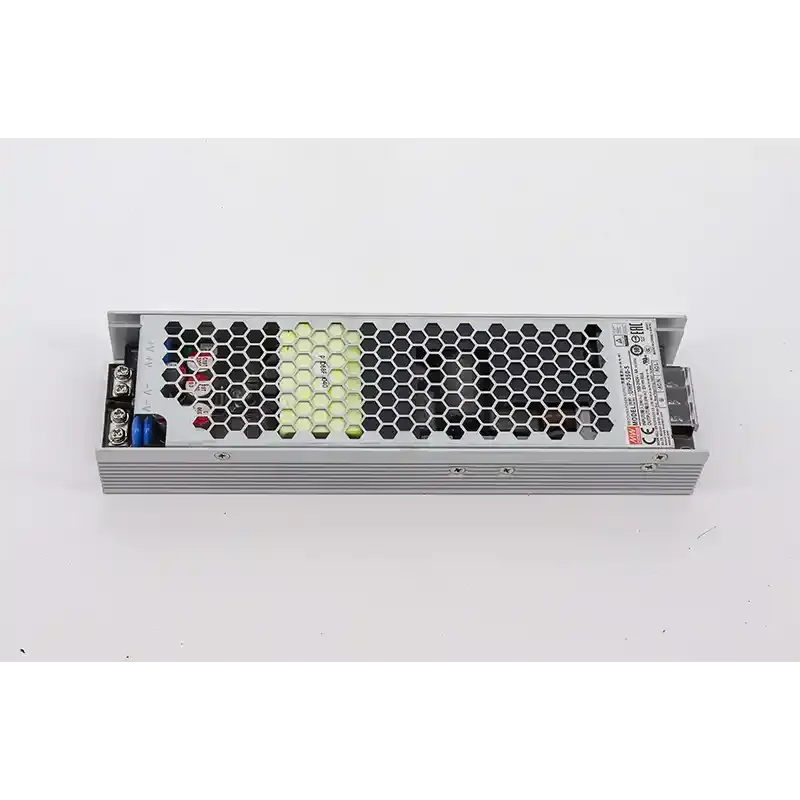

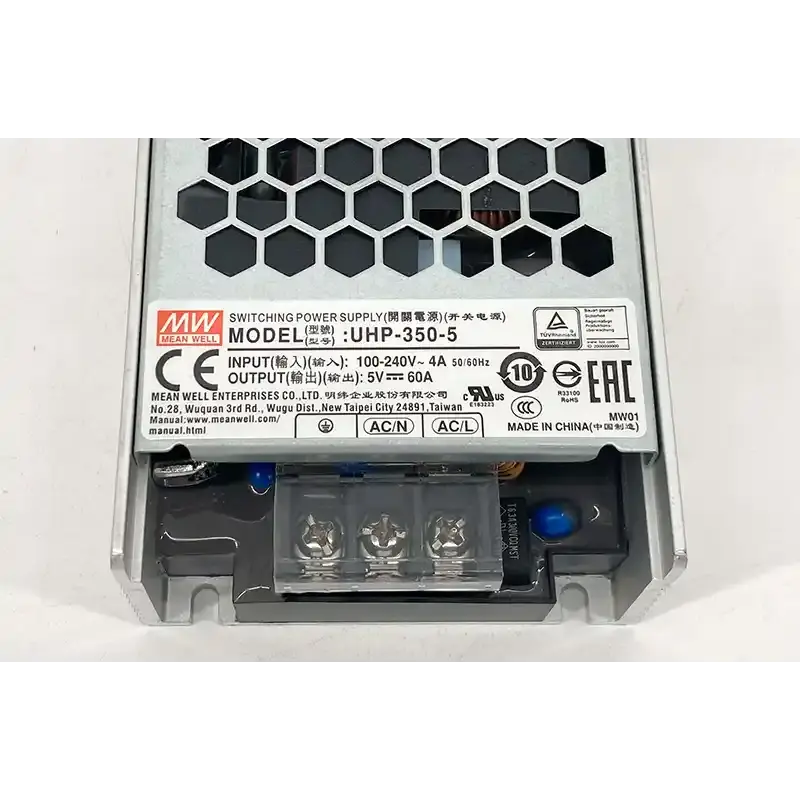

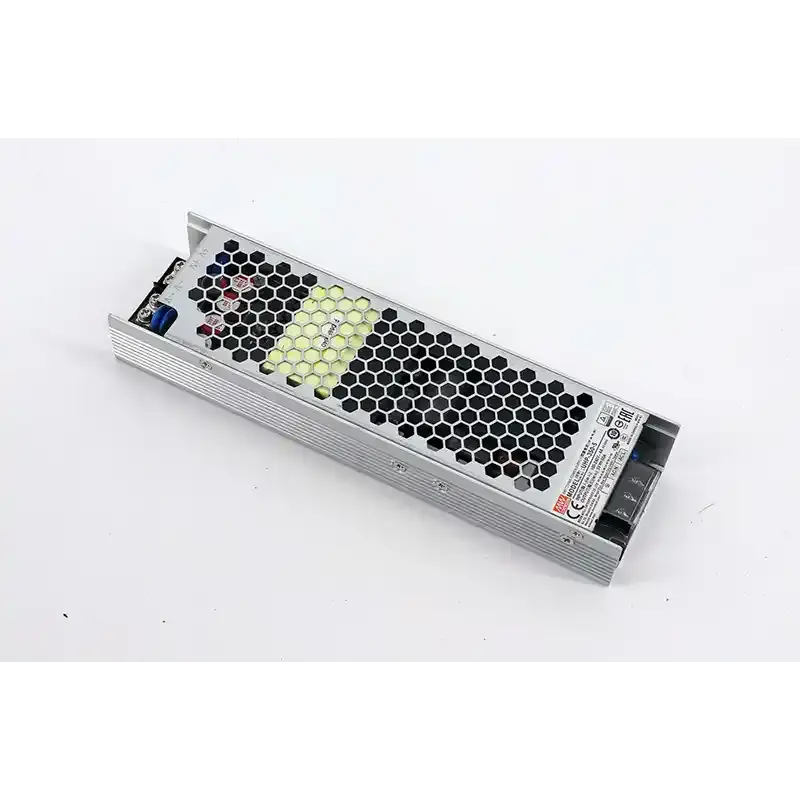

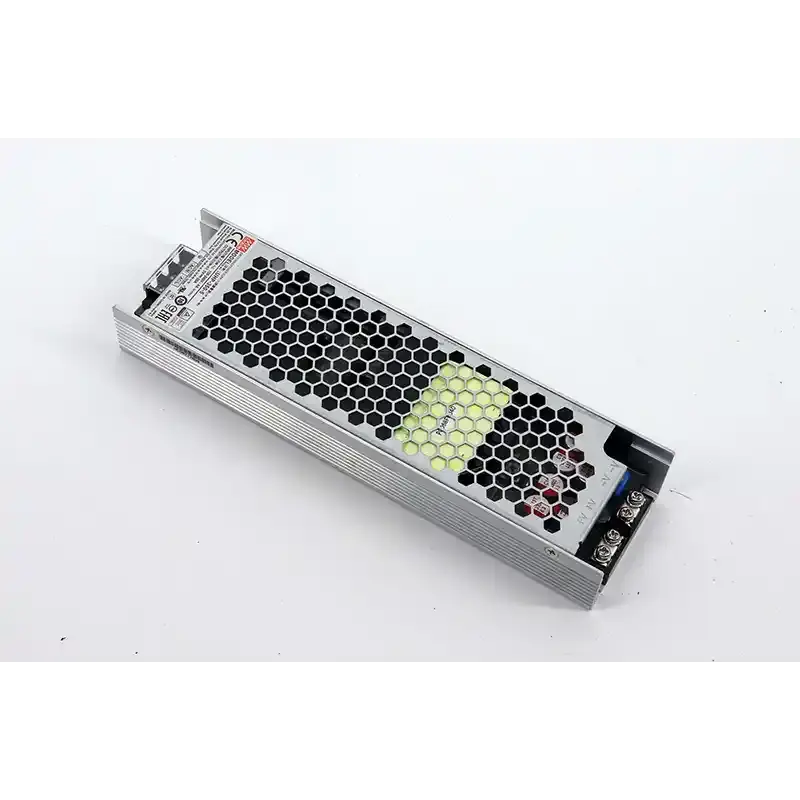

Meanwell UHP-350-5 Single-output Slim Type LED Power Supply

Meanwell UHP-350-5 Single-Output Slim Type LED Power Supply – Overview

The Meanwell UHP-350-5 is a high-performance, ultra-slim power supply designed for space-constrained LED lighting and industrial applications. Delivering 300W of continuous output power in a compact design only 31mm thick, this fanless power supply ensures quiet, reliable operation across a wide temperature range of -30°C to +70°C.

With 90–264VAC universal input, built-in active PFC, and comprehensive protection functions, the UHP-350-5 offers stable and efficient performance even in demanding environments. It supports installation at altitudes up to 5000 meters and meets major international safety standards including TUV EN62368-1, UL 62368-1, EN60335-1, and GB4943.

Designed with durability and flexibility in mind, it also features a DC OK signal output, optional redundancy support, and an LED power indicator for easy monitoring.

Key Features:

• Ultra-slim design: Only 31mm height

• Fanless convection cooling: Up to 300W output without noise

• Wide AC input range: 90–264VAC

• High efficiency: Up to 94%

• Built-in active PFC for improved power quality

• Withstands 300VAC surge input for 5 seconds

• Operating temperature range: -30°C to +70°C

• Comprehensive protections:

• Short Circuit

• Overload

• Over Voltage

• Over Temperature

• DC OK signal output and redundancy function (optional)

• LED indicator for power status

• 5G anti-vibration design for rugged environments

• Certified to global safety standards

• 3-year warranty

Typical Applications:

• LED display systems and signage

• Industrial automation equipment

• High-density control cabinets

• Lighting control systems

• Outdoor and harsh-environment installations
