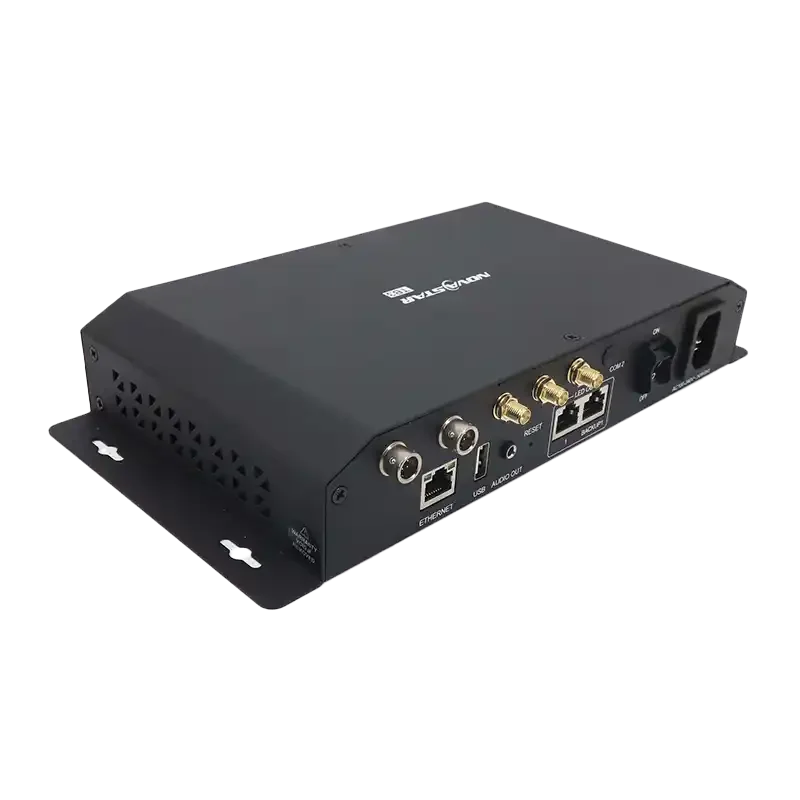

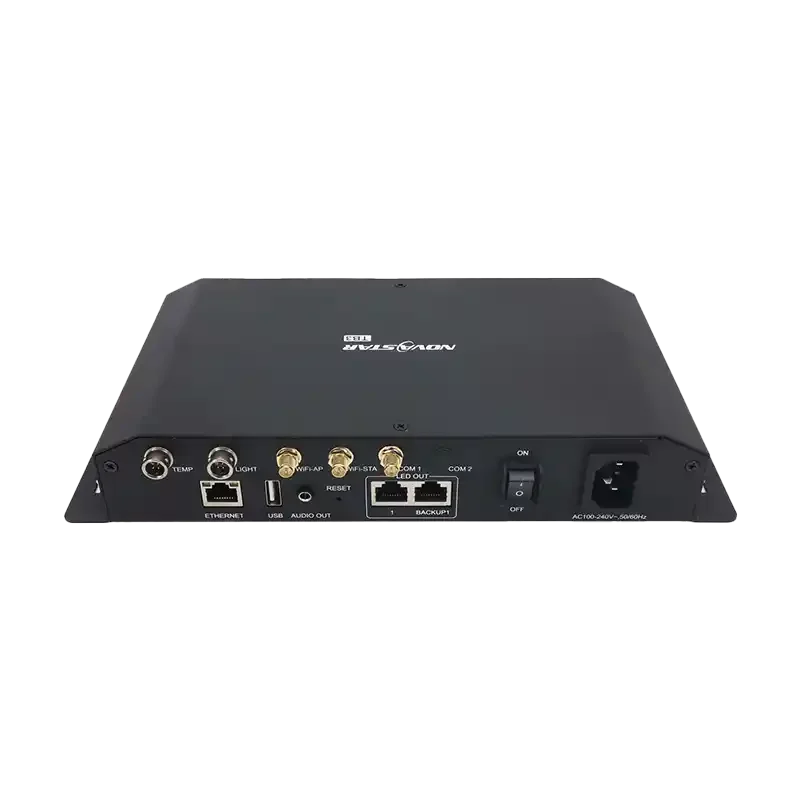

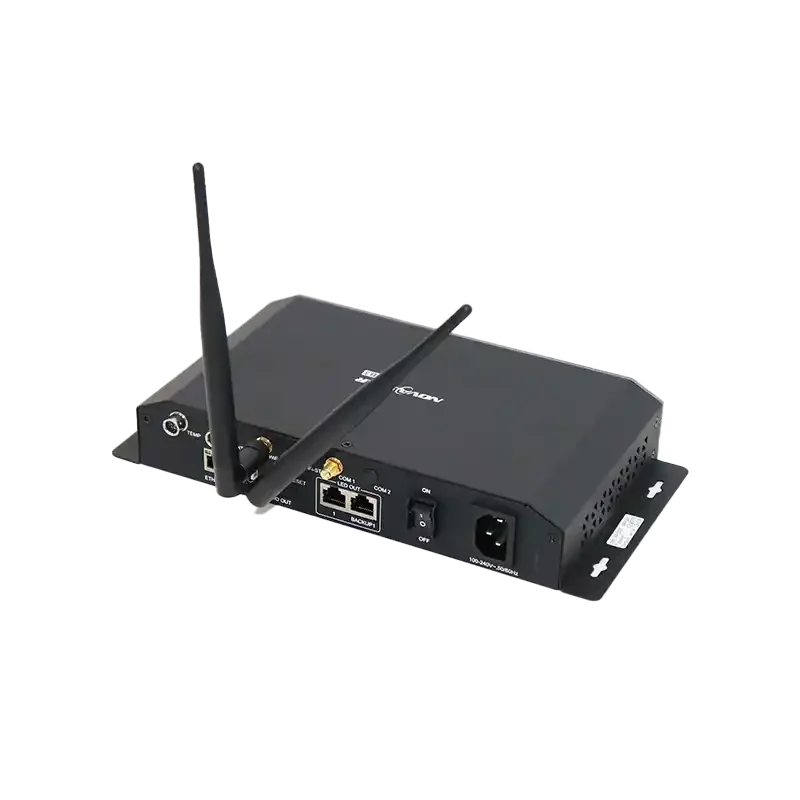

Novastar TB3 Video Screen LED Controller Box

LED Media Player

The Novastar TB3 LED Controller Box is a compact, high-performance solution for managing video screens and LED displays. It offers advanced image processing, supports multiple input sources, and provi

Get a quote Set OEM

LED Media Player Details

Novastar TB3 has been discontinued. We recommend the Novastar TB30 as a replacement.

The Taurus series represents the second generation of multimedia players from NovaStar, specifically designed for small to mid-sized full-color LED displays.

Key features of the TB3 include:

Loading capacity of up to 650,000 pixels
Multi-screen synchronization support
Powerful processing performance
Comprehensive control solutions
Dual-Wi-Fi mode and optional 4G module
Redundant backup system

Notes:

For high-precision synchronization, we recommend using the time synchronization module. Please contact our technical team for details.
The omnidirectional control plan supports not only PC-based control and program publishing but also mobile devices, LAN, and remote centralized management.
If using a 4G network, ensure compliance with local service requirements and install the 4G module in advance.

Applications:
Ideal for various commercial LED display scenarios including bar screens, chain store displays, digital signage, smart mirrors, retail screens, door header displays, onboard displays, and applications without a PC.

Novastar TB3-4G-008

Specifications

TB3 Item	Sub-Item	Specifications
Physical specifications	Dimensions (H×W×D)	278.5 mm × 148.5 mm × 45.0 mm
	Weight	1325.3 g
	Input voltage	100V–240 VAC
	Rated power consumption	10 W
	Storage temperature	0°C–50°C
	Storage humidity	0% RH–80% RH
	Operating temperature	-40°C–80°C
	Operating humidity	0% RH–80% RH
	Operating memory	2 GB
	Internal storage space	8 GB
Packing information	Dimensions (H×W×D)	375 mm × 280 mm × 108 mm

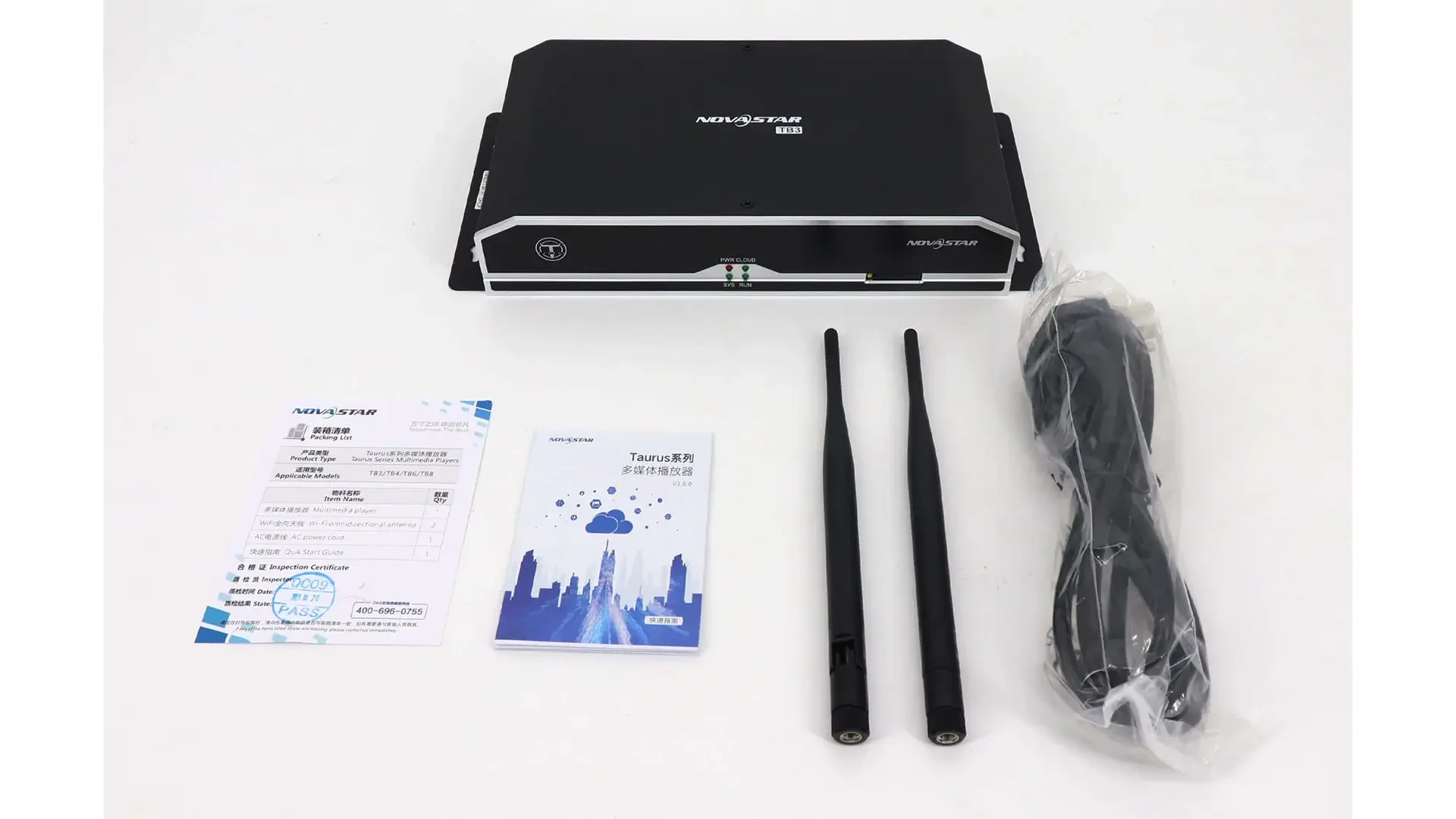

	List	• TB3 LED multimedia player x 1<br>• Columned Wi-Fi omnidirectional antenna x 2<br>• Flat 4G network antenna x 1<br>• AC power cord x 1
Characteristics		• Support 650,000 pixel loading capacity, with maximum width of 4096 pixels and maximum height of 1920 pixels.<br>• Support 1-primary 1-standby Ethernet port redundant mechanism.<br>• Support dual-Wi-Fi, and features Wi-Fi AP and Wi-Fi Sta functions.<br>• Support Gigabit wired network.<br>• Support stereo audio output.
