Novastar CVT10-M multi-mode LED Display Fiber Converter

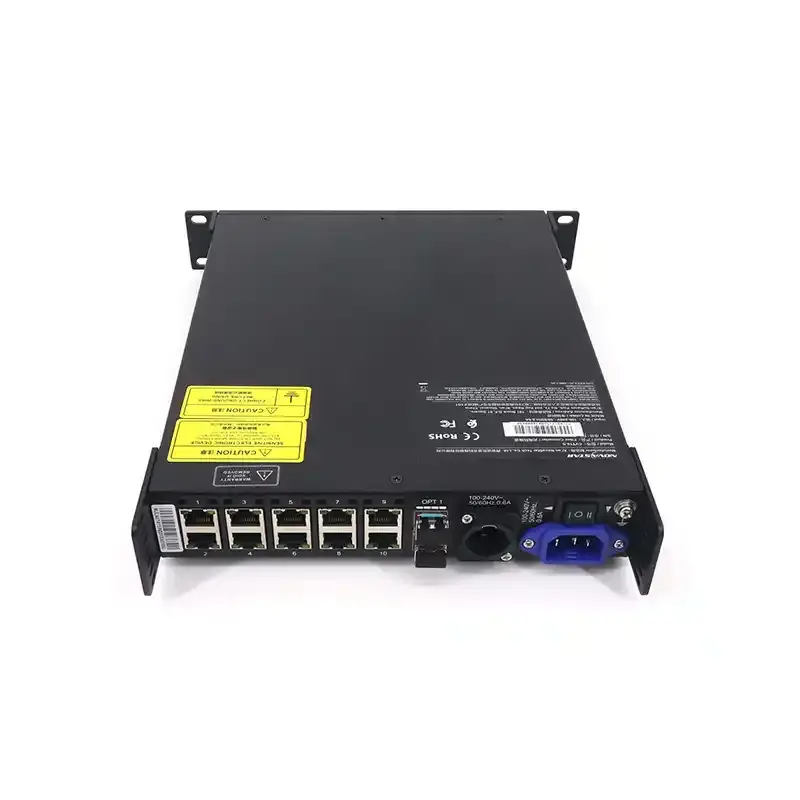

Novastar CVT10-M Multi-Mode LED Display Fiber Converter – Overview

The Novastar CVT10-M is a high-performance fiber converter designed for LED display systems. It enables seamless bidirectional conversion between optical and electrical signals, connecting sending cards to LED displays with stability and efficiency. Offering full-duplex communication, it delivers interference-resistant, high-speed data transmission—ideal for long-distance applications.

Built with versatility in mind, the CVT10-M supports multiple installation methods: horizontal placement, suspension mounting, or rack mounting. For space-saving integration, two CVT10 units or one CVT10 and a connector piece can be combined into a 1U-width rack-mounted assembly.

Key Features of the Novastar CVT10-M:

• Model Options:

• CVT10-S (Single-mode)

• CVT10-M (Multi-mode)

• Dual Optical Ports:

• Factory-installed hot-swappable optical modules

• Each port supports up to 10 Gbit/s bandwidth

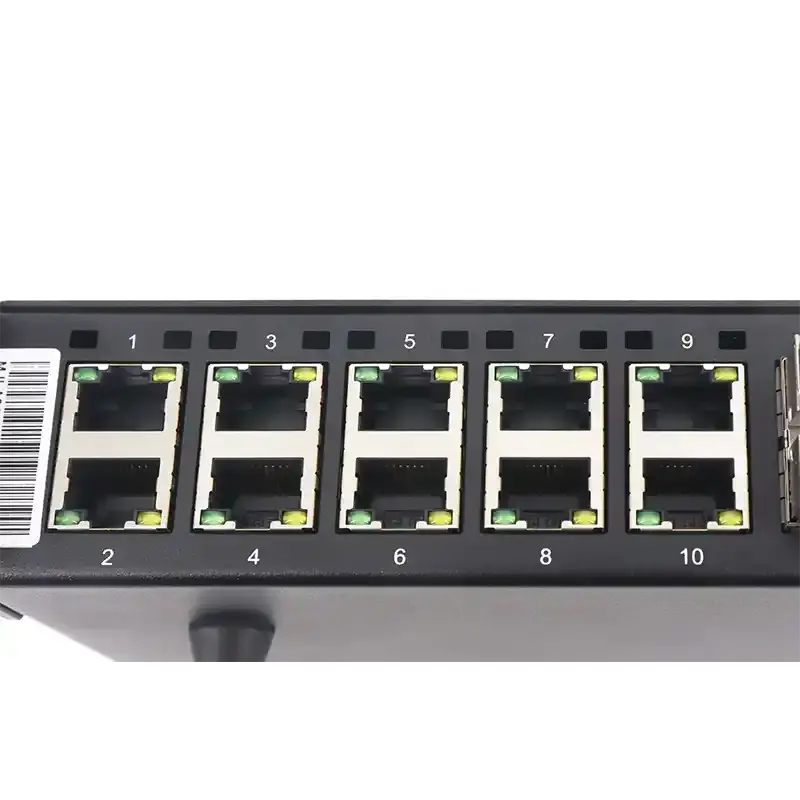

• 10 Gigabit Ethernet Ports:

• 8 ports used for 8/16-port input devices

• All 10 ports used for 10/20-port input devices

• Ports 9 and 10 may require future firmware update for full functionality

• Each port supports up to 1 Gbit/s bandwidth

• Flexible usage depending on input device:

• Transmission Modes Supported:

• Fiber In → Ethernet Out

• Ethernet In → Fiber Out

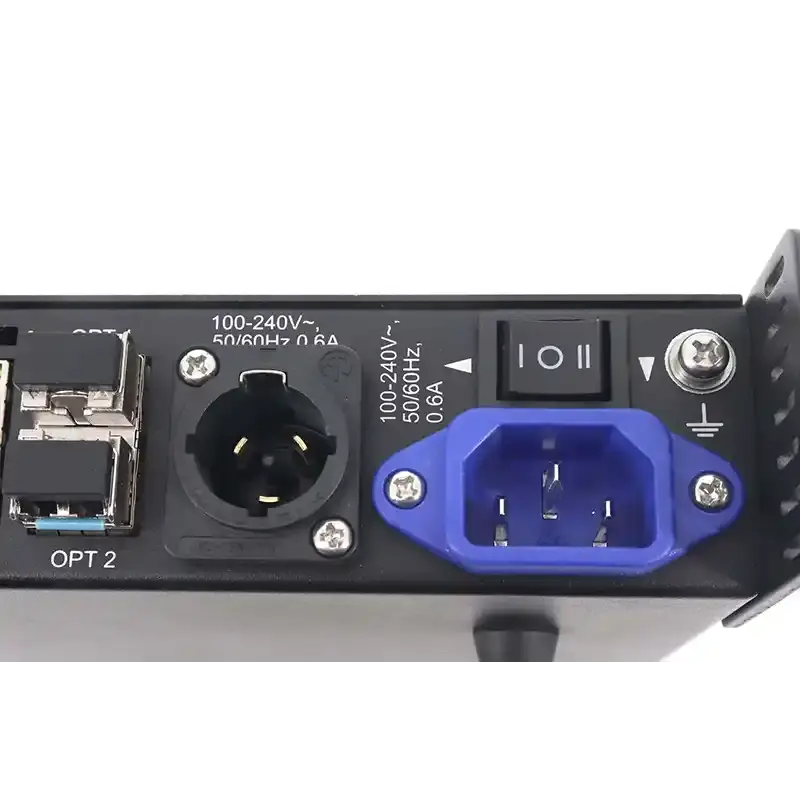

• Power Supply Options:

• 3-pin power socket

• PowerCON locking connector for secure connections

• Control Interface:

• 1 x Type-B USB control port

Typical Applications:

Perfect for large-scale indoor and outdoor LED displays, including rental stages, broadcast studios, stadiums, and commercial displays where stable, long-distance signal transmission is essential.
