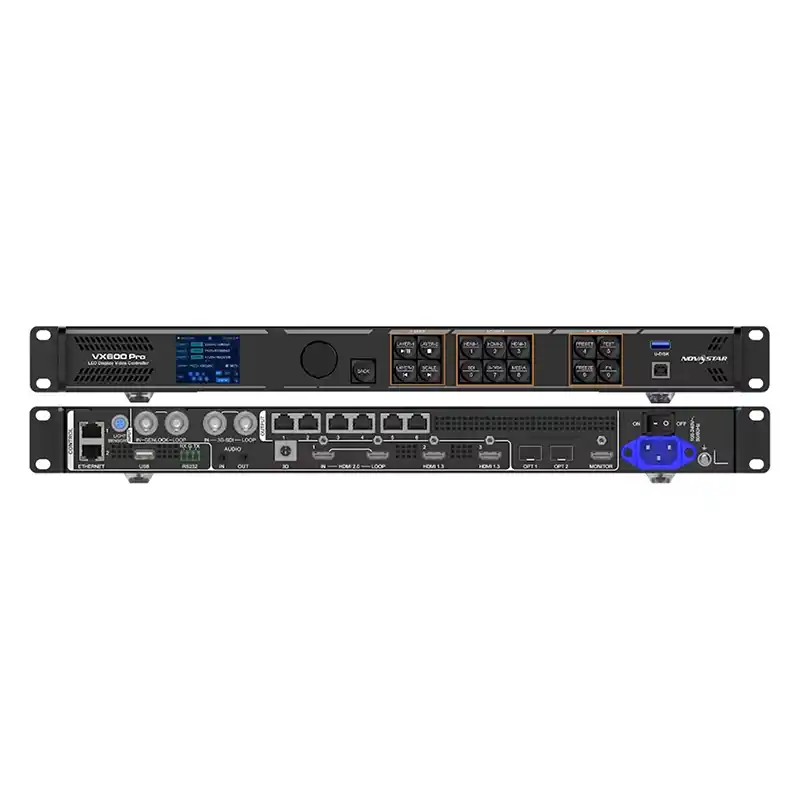

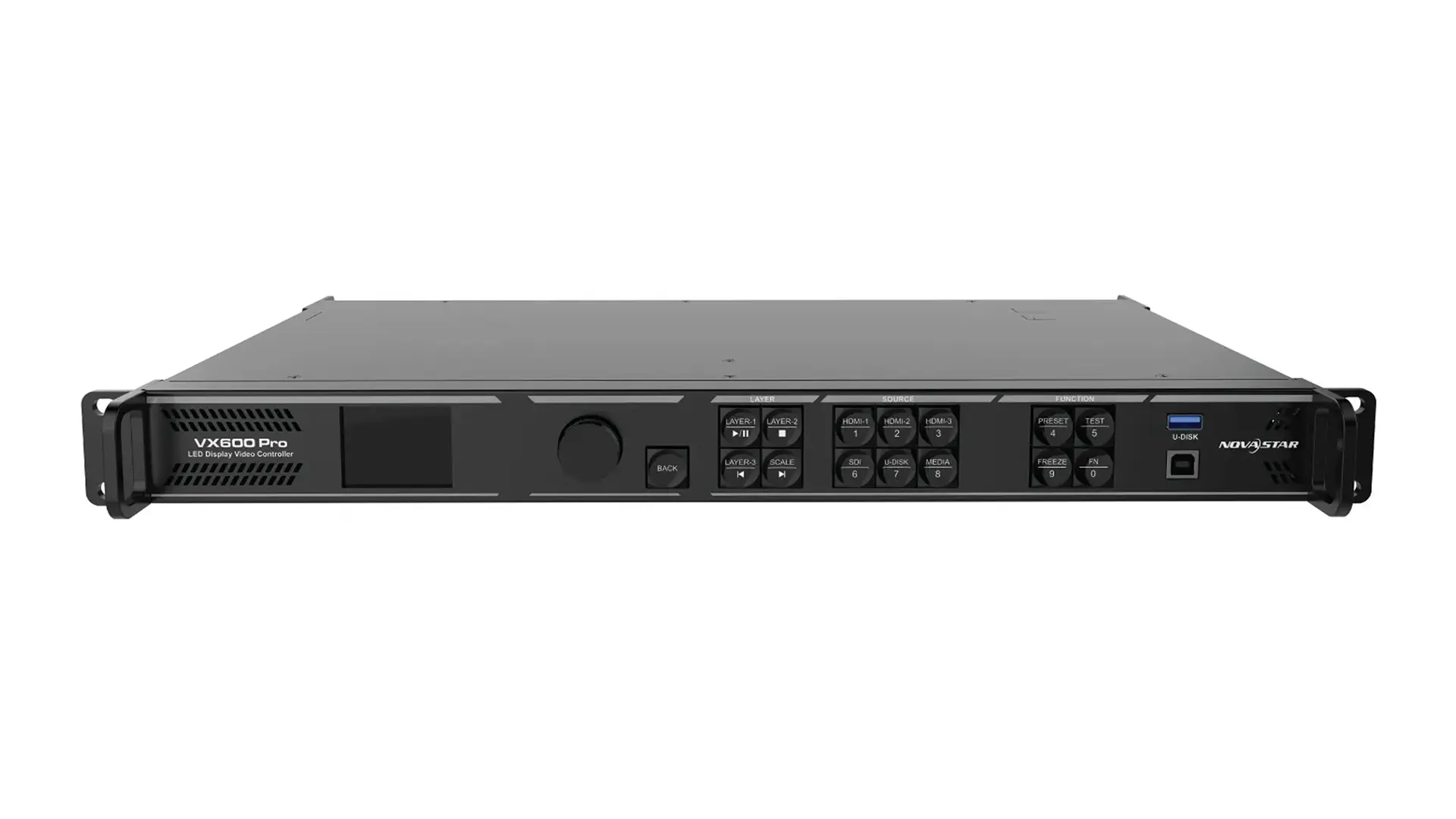

Novastar LED Screen VX600 Pro All-in-one Video Controller

Novastar LED Screen VX600 Pro All-in-one Video Controller

The VX600 Pro by NovaStar is a high-performance all-in-one video controller designed for managing ultra-wide and ultra-high LED screens. Supporting up to 3.9 million pixels, it offers extensive I/O op

SKU: Novastar-VX600 PRO Categories: LED Video Controller, Novastar Brand: Novastar
Get a quote Set OEM

LED Video Controller Details

novastar vx600 PRO-007

Introduction

The VX600 Pro All-in-One Controller by NovaStar is a high-performance solution designed for managing ultra-wide and ultra-high LED screens. Released initially on January 6, 2025, and optimized in its content on March 5, 2025, this device integrates video processing and control functionalities into a single unit. It supports three working modes: video controller, fiber converter, and ByPass mode, making it an ideal choice for medium to high-end rental systems, stage control systems, and fine-pitch LED displays. With support for up to 3.9 million pixels and resolutions of up to 10,240 pixels in width and 8,192 pixels in height, the VX600 Pro can handle even the most demanding display requirements with ease. Its robust design ensures stability and reliability under rigorous conditions, backed by certifications such as CE, FCC, IC, RCM, EAC, UL, CB, KC, and RoHS.

Features and Capabilities

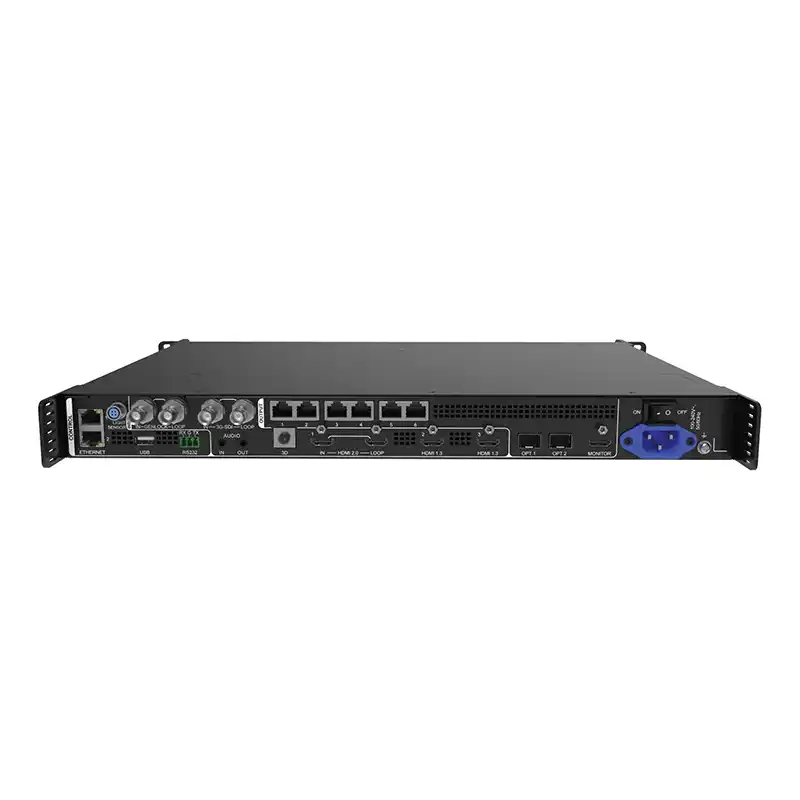

One of the standout features of the VX600 Pro is its extensive range of input and output connectors, including HDMI 2.0, HDMI 1.3, 10G optical fiber ports, and 3G-SDI. The device supports multiple video signal inputs and outputs, allowing for flexible configuration options that cater to various needs. Additionally, it includes advanced functions like low latency, pixel-level brightness and chroma calibration, and output synchronization, ensuring outstanding image quality. The controller also offers several control options, including a front panel knob, NovaLCT software, Unico web page, and VICP app, providing users with convenient and efficient control over their LED displays. Moreover, the VX600 Pro boasts end-to-end backup solutions, including data saving after power failure, Ethernet port backup tests, and 24/7 stability testing under extreme temperatures.


novastar vx1000 -009

Specifications

Electrical ParametersPower connector100-240V~, 50/60Hz
Rated power consumption41 W
Operating EnvironmentTemperature0°C to 50°C
Humidity5% RH to 85% RH, non-condensing
Storage EnvironmentTemperature–10°C to +60°C
Humidity5% RH to 95% RH, non-condensing
Physical SpecificationsDimensions482.6 mm × 302.2 mm × 50.1 mm
Net weight3.9 kg
Total weight6.5 kg
Packing InformationCarrying Case545 mm × 425 mm × 145 mm
Accessories1x Power cord, 1x Ethernet cable, 1x HDMI cable, 2x Silicone dustproof plugs, 1x USB cable, 1x Phoenix connector, 1x Quick Start Guide, 1x Certificate of Approval
Packing Box565 mm × 450 mm × 175 mm
Noise Level (typical at 25°C/77°F)45 dB (A)
