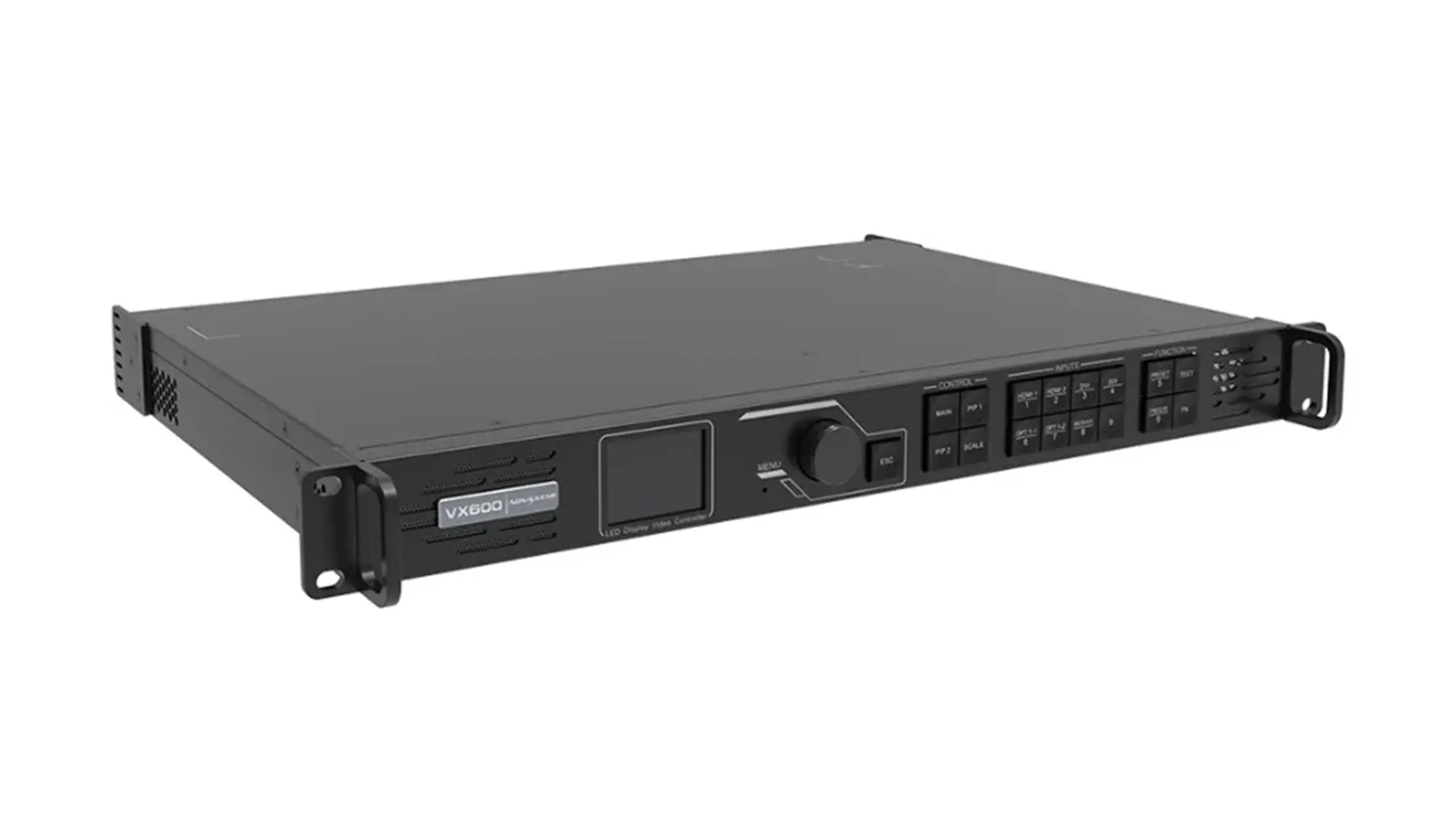

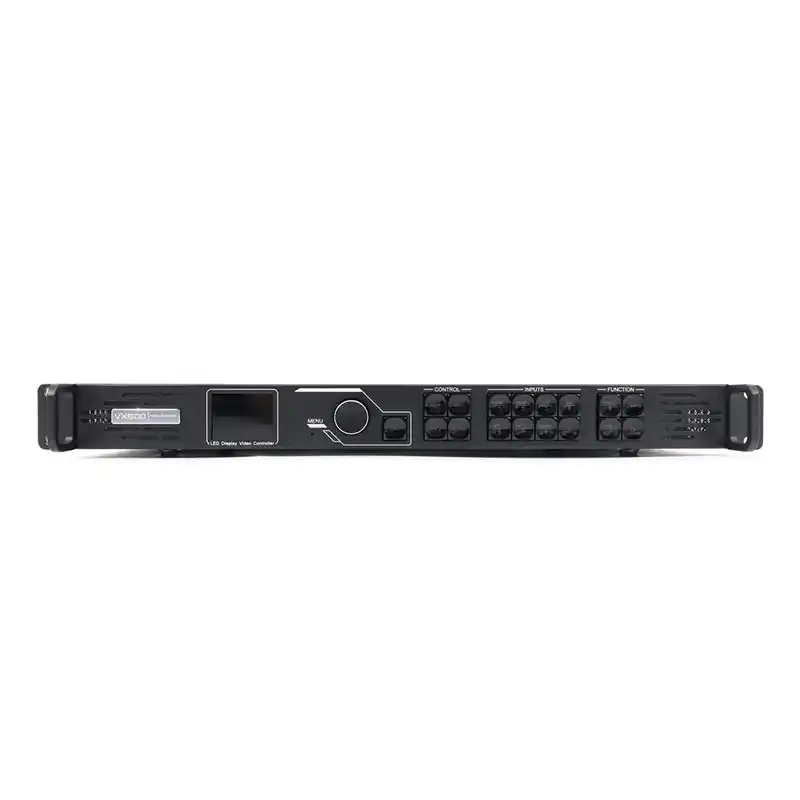

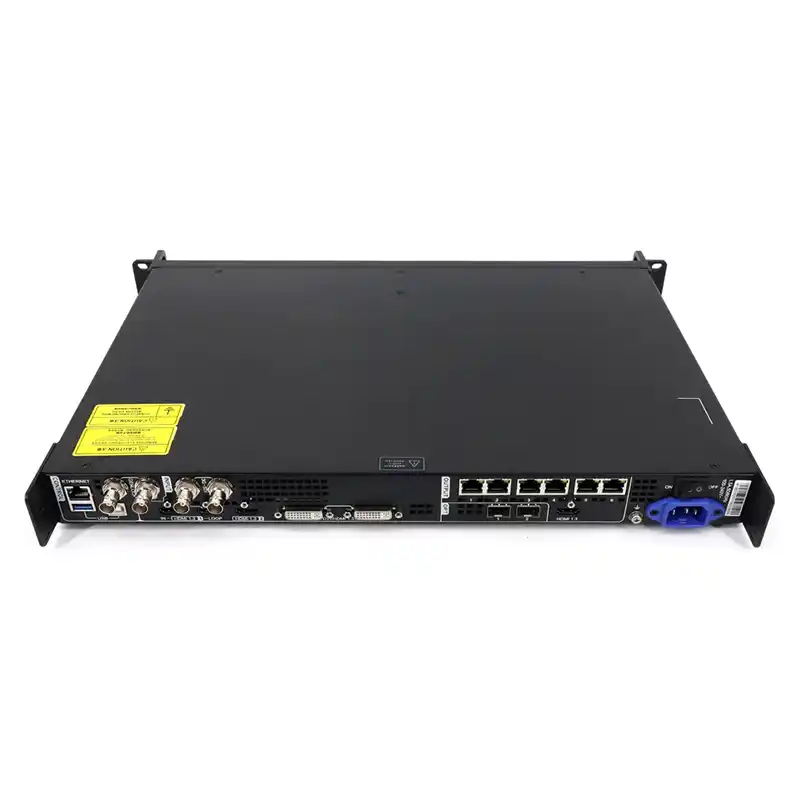

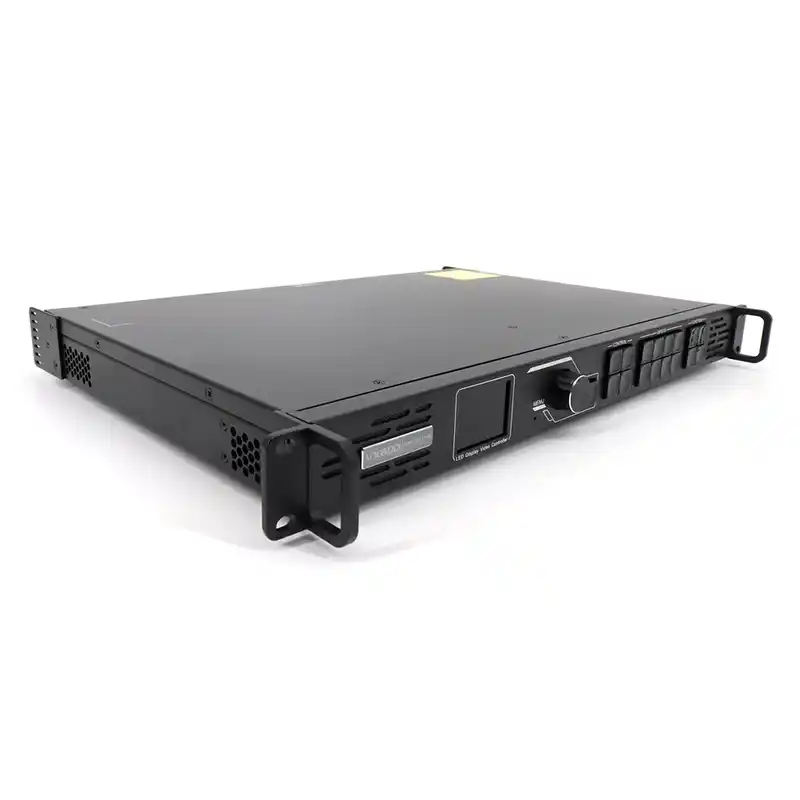

Novastar LED Screen VX600 All-in-one Video Controller

Novastar LED Screen VX600 All-in-one Video Controller

Discover the Novastar VX600 All-in-One Fine-Pitch LED Screens Controller, delivering seamless high-definition displays with advanced video processing. Ideal for professional settings, it supports up t

SKU: Novastar-VX600 Categories: LED Video Controller, Novastar Brand: Novastar
Get a quote Set OEM

LED Video Controller Details

NOVASTAR VX600-007

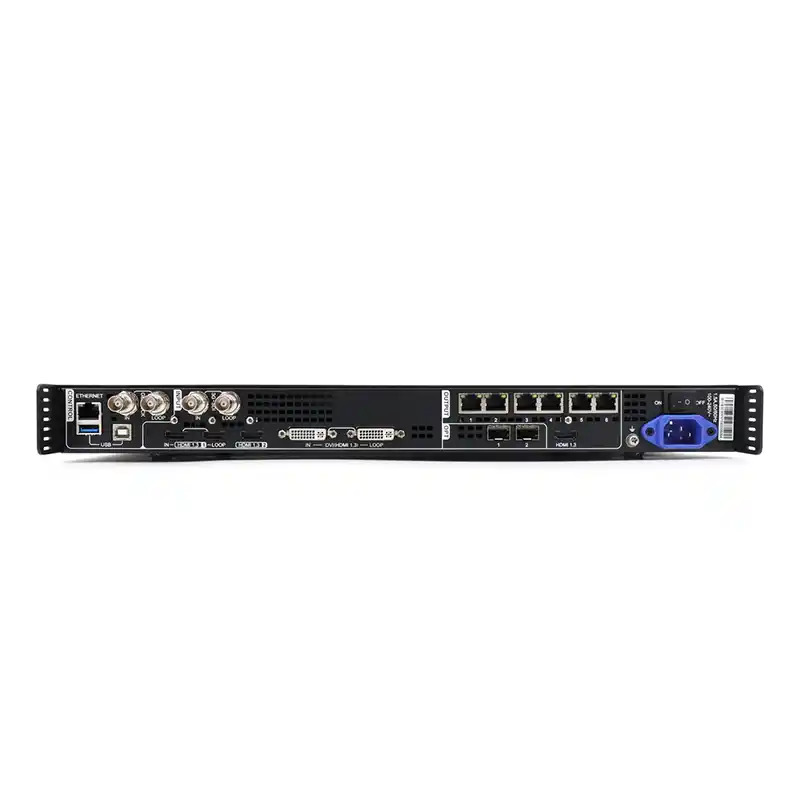

The Novastar VX600 is a next-generation all-in-one LED display controller that seamlessly integrates advanced video processing and control functionalities into a single compact unit. Designed for high-performance applications, the VX600 features 6 Ethernet ports and supports multiple operating modes, including video controller, fiber converter, and Bypass mode, offering enhanced flexibility and reliability.

With a powerful driving capacity of up to 3.9 million pixels, the VX600 delivers ultra-high-resolution output with maximum width and height reaching 10,240 pixels and 8,192 pixels, respectively — making it an ideal solution for large-format, ultra-wide, and ultra-high-definition LED screens.

The VX600 supports a wide range of video input signals and enables high-resolution image processing with advanced features such as stepless scaling, low-latency transmission, and pixel-level brightness and chromaticity calibration, ensuring exceptional image clarity and color accuracy for a superior visual experience.

For seamless integration and efficient on-site management, the VX600 is fully compatible with NovaStar’s flagship software tools — NovaLCT and V-Can. These platforms enable intuitive control over screen configuration, Ethernet port redundancy settings, layer and preset management, firmware upgrades, and more, significantly streamlining operation workflows and enhancing user productivity.

Specifications

Electrical ParametersPower connector100–240V~, 1.5A, 50/60Hz
Rated          power consumption35 W
Operating EnvironmentTemperature–10°C to 45°C
Humidity20% RH to 90% RH, non-condensing
Storage EnvironmentTemperature–20°C to +70°C
Humidity10% RH to 95% RH, non-condensing
Physical SpecificationsDimensions483.6 mm × 351.2 mm × 50.1 mm
Net weight4 kg

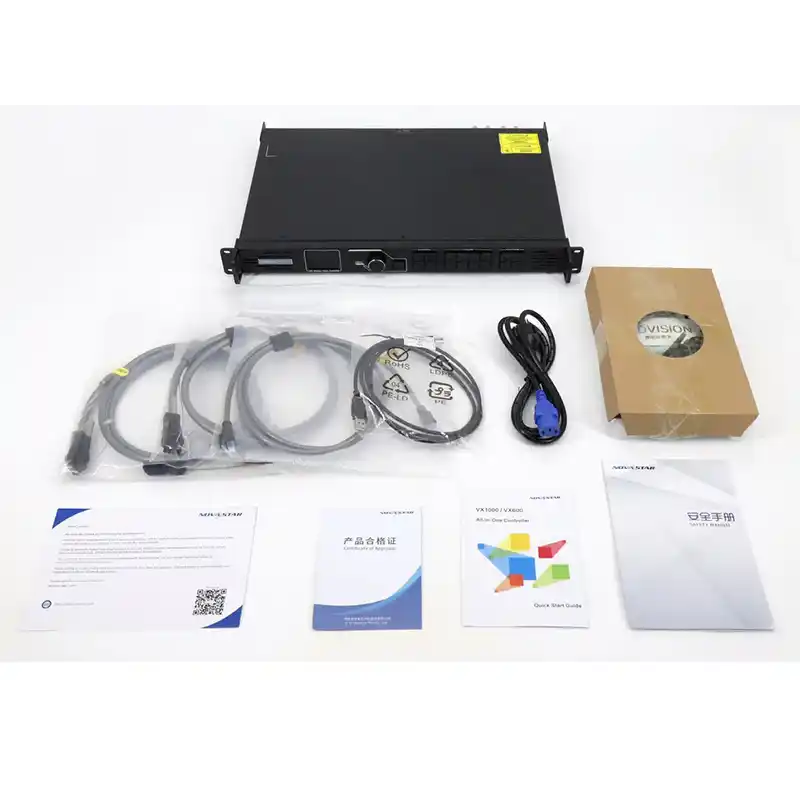

Packing InformationAccessoriesFlight CaseCarton
1x Power cord
1x HDMI to DVI cable 1x USB cable
1x Ethernet cable 1x HDMI cable
1x Quick Start Guide
1x Certificate of Approval 1x DAC cable
1x Power cord
1x HDMI to DVI cable 1x USB cable
1x Ethernet cable 1x HDMI cable
1x Quick Start Guide
1x Certificate of Approval 1x Safety Manual
1x Customer Letter
Packing size521.0 mm × 102.0 mm × 517.0 mm565.0 mm × 175.0 mm × 450.0 mm
Gross weight10.4 kg6.8 kg
Noise Level (typical at 25°C/77°F)45 dB (A)
