MCTRL660 NOVASTAR LED Display Independent Master Sender Box

MCTRL660 NOVASTAR LED Display Independent Master Sender Box

The **MCTRL660** by NovaStar is a cutting-edge independent master controller for LED displays, offering smart configuration within 30 seconds and supporting 12-bit HDMI/HDCP. It features the Nova G4 e

SKU: NOVASTAR-MCTRL660 Categories: LED Video Controller, New Products, Novastar, OrderlyEmails - Recommended Products Brand: Novastar
Get a quote Set OEM

LED Video Controller Details

Functions & Features of the MCTRL660 NOVASTAR LED Display Independent Master Controller

The MCTRL660 is the latest-generation independent master controller from NOVASTAR, designed to deliver high-performance control for LED displays with exceptional ease of use and advanced image processing capabilities. It supports real-time screen configuration without the need for a PC, making it ideal for both fixed installations and dynamic rental applications.

Key Features:

  1. Smart Configuration Architecture
    Utilizes an innovative system design that enables quick and intelligent screen setup, completing debugging in under 30 seconds.

  2. Nova G4 Engine for Stable, High-Quality Output
    Ensures flicker-free, scanning-line-free display performance with vivid images and enhanced depth perception.

  3. Next-Generation Point-by-Point Correction Technology
    Supports fast and efficient pixel-level calibration for uniform brightness and color across the entire display.

  4. Advanced Color Management
    Offers white balance calibration and color gamut mapping tailored to the characteristics of different LED modules, ensuring accurate and natural color reproduction.

  5. Industry-Leading HDMI Input Support
    Unique in China for supporting 12-bit HDMI input with HDCP compliance, enabling secure playback of high-definition digital content.

  6. On-Site Screen Configuration
    Allows screen parameter adjustments anytime, anywhere—without requiring a connected computer.

  7. Manual Brightness Adjustment
    Provides intuitive and efficient manual control over screen brightness levels.

  8. Multiple Video Inputs
    Supports HDMI/DVI video input and HDMI/external audio input, offering flexible connectivity options.

  9. High-Bitrate Video Compatibility
    Handles 12-bit, 10-bit, and 8-bit HD video sources, delivering superior color gradation and detail.

  10. Wide Range of Supported Resolutions
    Includes support for:

    • 2048×1152

    • 1920×1200

    • 2560×960

    • 1440×900 (12-bit/10-bit)

  11. Integrated Light Sensor Interface
    One built-in interface for ambient light sensors, enabling automatic brightness adjustment based on environmental lighting conditions.

  12. Cascading Support
    Allows multiple controllers to be connected for managing large-scale or multi-zone displays.

  13. 18-bit Gray Scale Processing
    Delivers smooth color transitions and fine detail with enhanced grayscale resolution.

  14. Supported Video Formats

    Compatible with RGB, YCrCb 4:2:2, and YCrCb 4:4:4 video formats for broad source compatibility.


Novastar MCTRL660-009



Novastar MCTRL660-008

Specifications

Electrical ParametersInput voltageAC 100 V–240 V, 50/60 Hz
Rated power consumption10 W
Operating EnvironmentTemperature-20°C–60°C
Humidity0% RH–90% RH, non-condensing
Dimensions483.0 mm × 258.1 mm × 55.3 mm
Space Requirement1.25U
Net Weight3.6 kg
CertificationsCB, RoHS, EAC, FCC, UL/CUL, LVD, EMC, KC, CCC, PSE

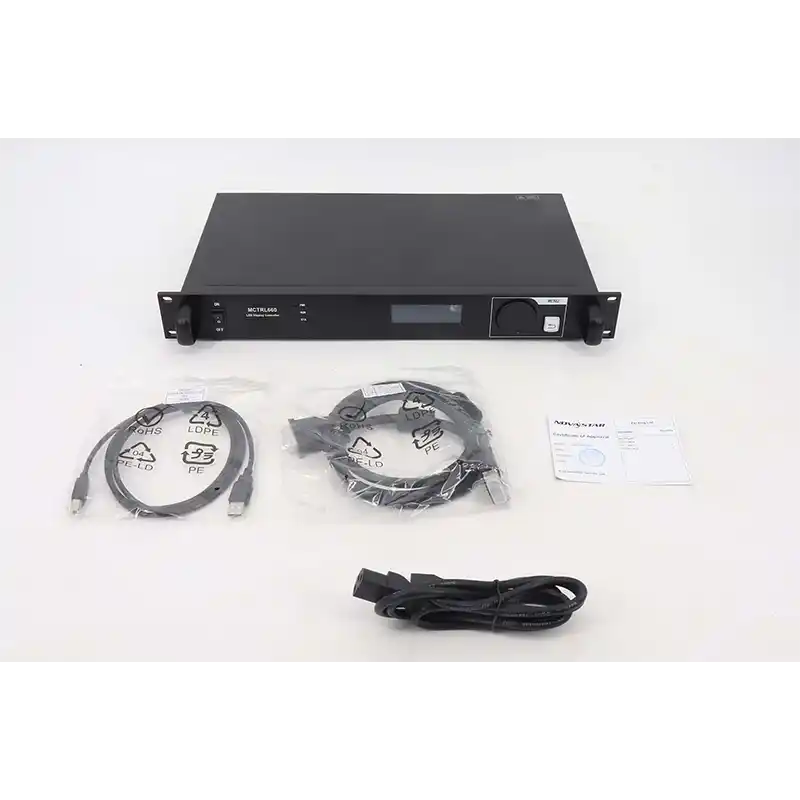

Packing InformationEach controller is provided with a carrying case, accessory box and packing box.
The controller and accessory box (containing controller related wires and accessories) is packed in the carrying case and the carrying case is packed in the packing box.
Carrying case530 mm ×370mm ×140 mm, kraft paper box printed with NOVASTAR
Accessory box402 mm× 347 mm × 65 mm, kraft paper box
  1 × power cord
  1 × USB cable
  1 × DVI cable
Packing box550 mm × 440 mm × 175 mm, kraft paper box printed with NOVASTAR
