8.8inch Android HD Bar: USB Ad Smart Signage

LCD-display

The BR09XCB-N is an 8.8" advertising screen with high brightness, wide viewing angles, and wireless

PRODUCT Size:8.8" Display area:218.88(H)X54.72(V)mm Resolution:1920(V)x480(H) Brightness:600 cd/㎡ Backlight source:WLED

Get a quote Set OEM

LCD display Details

BR09XCB-N Advertising Screen Overview

The BR09XCB-N is an 8.8-inch advertising screen with a high-brightness TFT panel, 1920x480 resolution, and WLED backlight. It offers wide viewing angles, a 30,000-hour lifespan, and supports 2.4G wireless networks and Bluetooth V4.0. The device runs on a Rockchip PX30 quad-core processor with 1GB RAM and 8GB storage expandable to 64GB. It consumes less than 10W and operates on DC 12V. The dimensions are 240.6mm x 69.6mm x 16mm, weighing 0.5kg. It's certified by CE and FCC, and comes with a one-year warranty. Optional features include multi-format playback, template management, remote updates, permission assignments, real-time monitoring, and log export.

Applicable Scenarios:

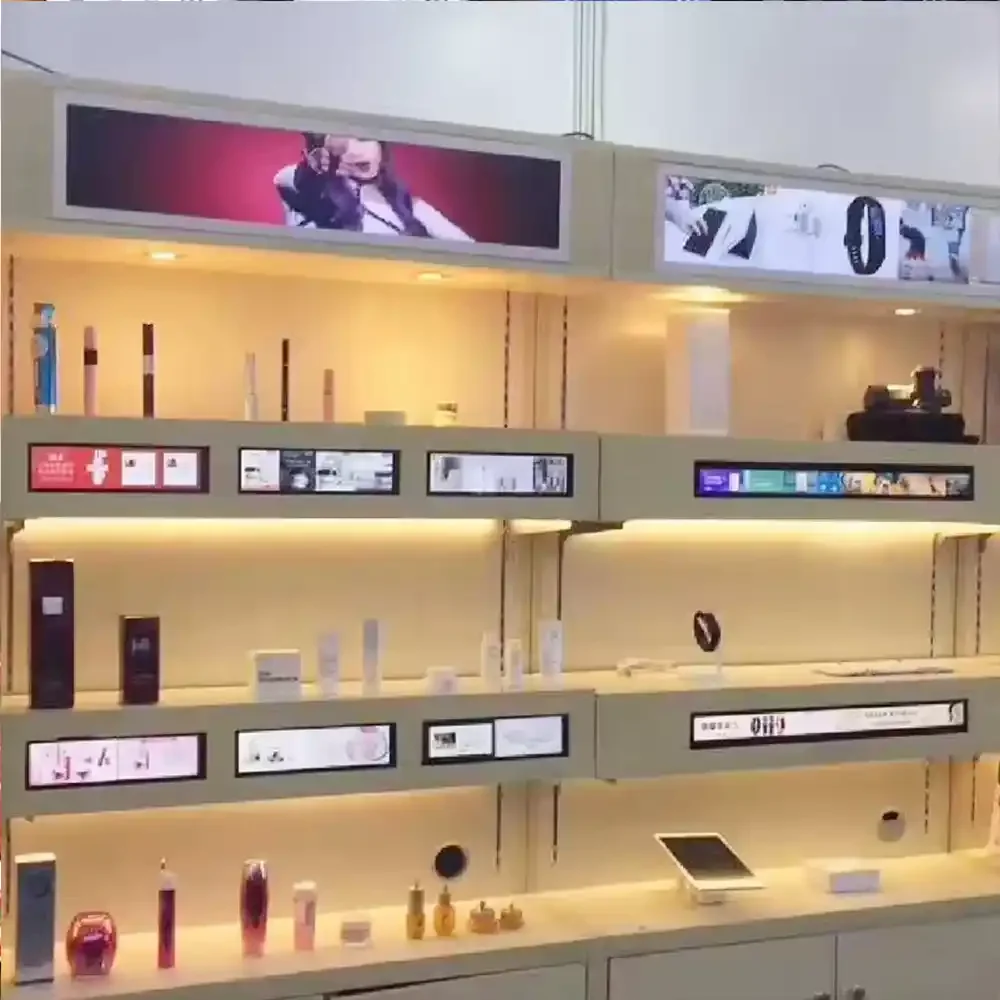

Retail stores for product promotions
Restaurants for menu displays
Public transportation hubs for wayfinding and advertisements
Office lobbies for company announcements
Educational institutions for campus news and event updates
Hotels for guest information and services promotion

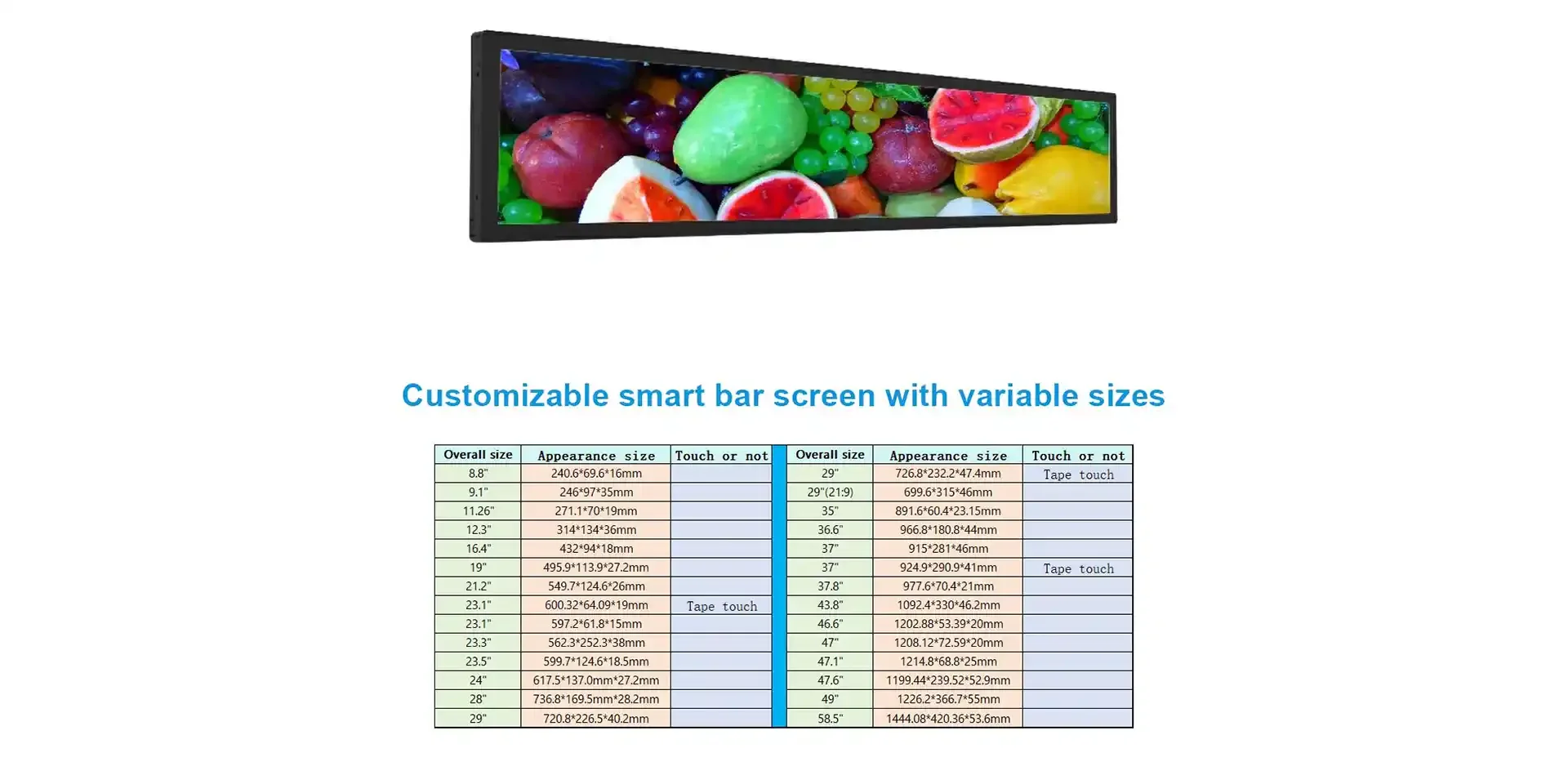

Customizable Smart Bar Screen: Variable Sizes

Enhance your venue with our Customizable Smart Bar Screen, offering flexible sizing to fit any space. Perfect for bars, clubs, and lounges, these displays provide vibrant visuals and seamless integration for menus, promotions, or live events. With advanced technology and tailored options, elevate your space and engage your audience effectively.

Customizable Smart Bar LCD Screen: Advanced Features for Ultimate Flexibility

Upgrade your space with our Customizable Smart Bar LCD Screen, designed to offer advanced features for dynamic environments:
Horizontal and Vertical Switching – Effortlessly switch between orientations to fit any display requirement.
USB Flash Drive Playback – Easily play content directly from USB drives for quick setup.
Various Sizes Available – Choose from multiple sizes to perfectly match your installation needs.
HD High-Definition and Bright Display – Enjoy clear, vibrant visuals that capture attention.
Network Remote Management – Manage and update displays remotely via network connectivity for convenience.
Supports 7*24 Hours Operation – Built for continuous, reliable performance day and night.
WiFi, Ethernet, Bluetooth Support – Multiple connectivity options for seamless integration.
Intelligent Power On/Off – Automate power schedules for energy efficiency and ease of use.
Android System – A user-friendly interface with smooth operation and app support.

IPS Screen with 100% Color Gamut: Stunning Visuals

Experience exceptional visual quality with our IPS Screen. Featuring a 100% color gamut and 16.7 million colors, it delivers natural, detailed images without dragging or motion blur.

Key Features:
100% Color Gamut: Vibrant, true-to-life colors.
16.7M Colors: Exceptional detail and realism.
Natural Picture: Enhanced color accuracy for lifelike images.
No Dragging: Smooth transitions and clear visuals.
Upgrade your display with technology that ensures vivid, realistic images for any setting.

Product Parameter(Model: BR09XCB-N)

TFT Screen	Size	8.8"
	Display area	218.88(H)X54.72(V)mm
	Resolution	1920(V)x480(H)
	Brightness	600 cd/㎡
	Backlight source	WLED
	Lifespan	30000 hours
	Viewable angle	85/85/85/85 (Typ.)(CR≥10)
	Contrast ratio	800:1
	Frame rate	60 Hz
	Color depth	16.7M , 50% NTSC
	Response time	30 (Typ.)(Tr+Td) ms
System	Processor	Rockchip PX30 Quad core ARM Cotex-A35
	Memory	1GB DDR3
	Built-in storage	8GB
	External storage	Max supports 64GB TF card
	Network/BT	Supports 2.4G wireless network WiFi, Bluetooth V4.0 connectivity
	Interface	2 micro USB (OTG), 1 TF card, 2 Type-c (DC 12V power supply)
	Operating System	Android 8.1
Power supply	Power	≤10W
Power supply	Voltage	DC 12V
Whole machine and packaging	Size	240.6mm x 69.6mm x 16mm
	Net weight	0.5 kg
	Package size (4 units/case)	310mm x 270mm x 150mm
	Gross weight	2.8 kg
Environment	Working environment	Temperature: -20°C~70°C Humidity: 10%~85% Pressure: 86kPa~104kPa
Environment	Storage environment	Temperature: -30°C~80°C Humidity: 5%~95% Pressure: 86kPa~104kPa
Certification	CE, FCC certification	Available
Accessories	Warranty	1 year
	Accessories	Adapters, wall mounting plate
	Other options	OTG cable
Optional	information release system	Multiple Format Playback: Displays images, text, videos, web pages, and more.
		Multi-Zone Visual Editing: Supports template management for flexible content layout.
		Distributed Remote Management: Enables remote updates and scheduled power on/off.
		Multi-Account Management: Allows for the assignment of over 50 types of permissions.
		System Monitoring: Provides real-time status updates and terminal log queries.
		Log Statistics and Export: Terminal logs can be queried and exported to Excel documents.
