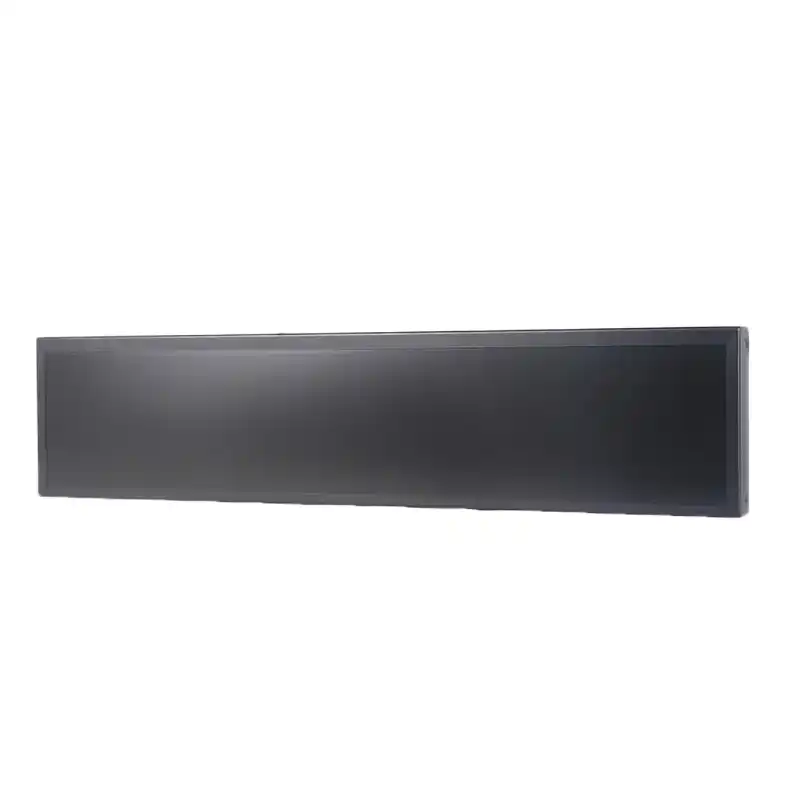

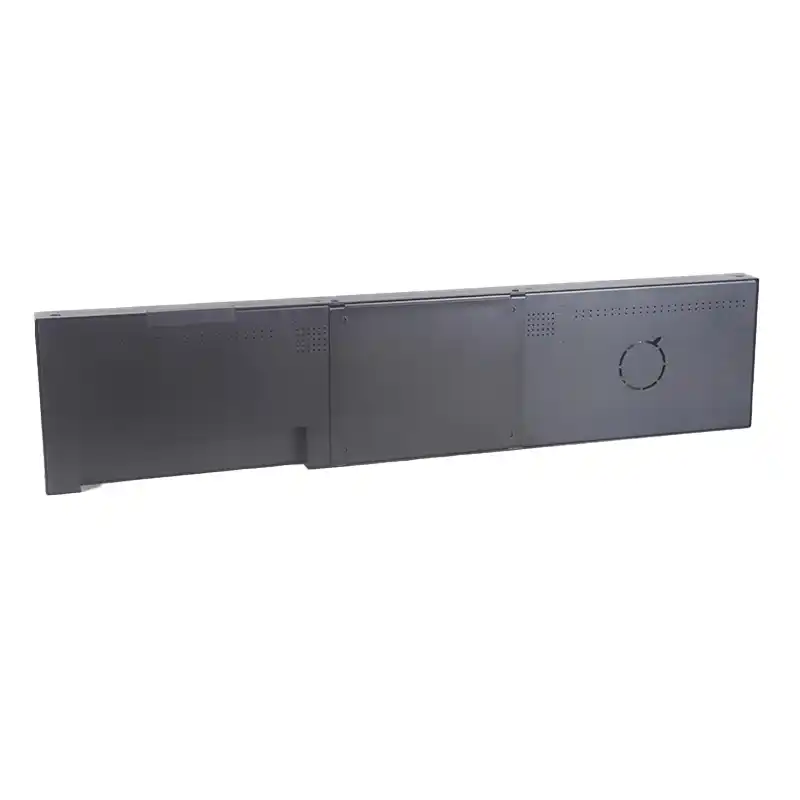

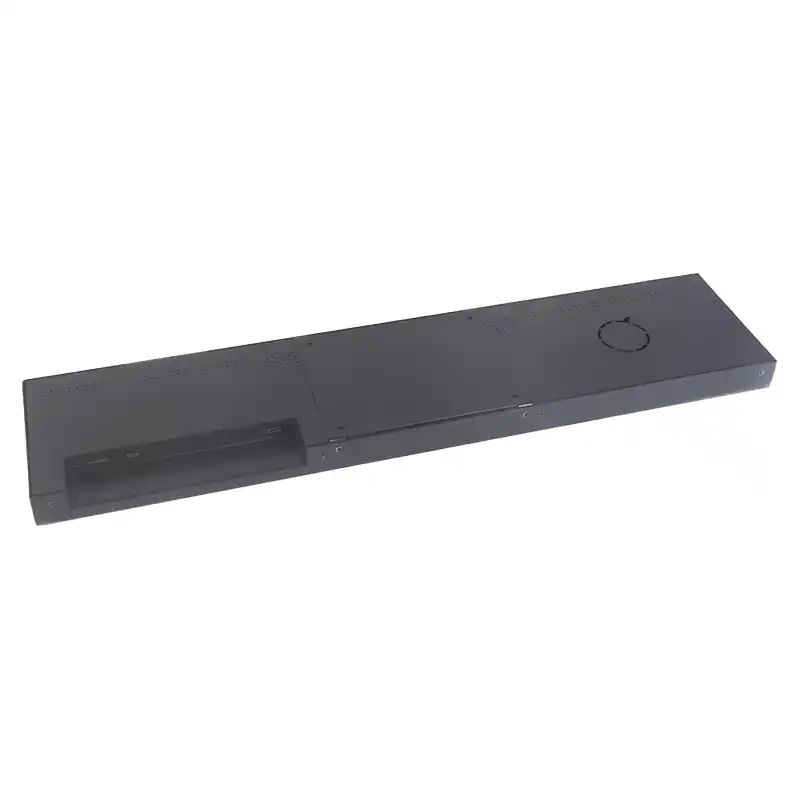

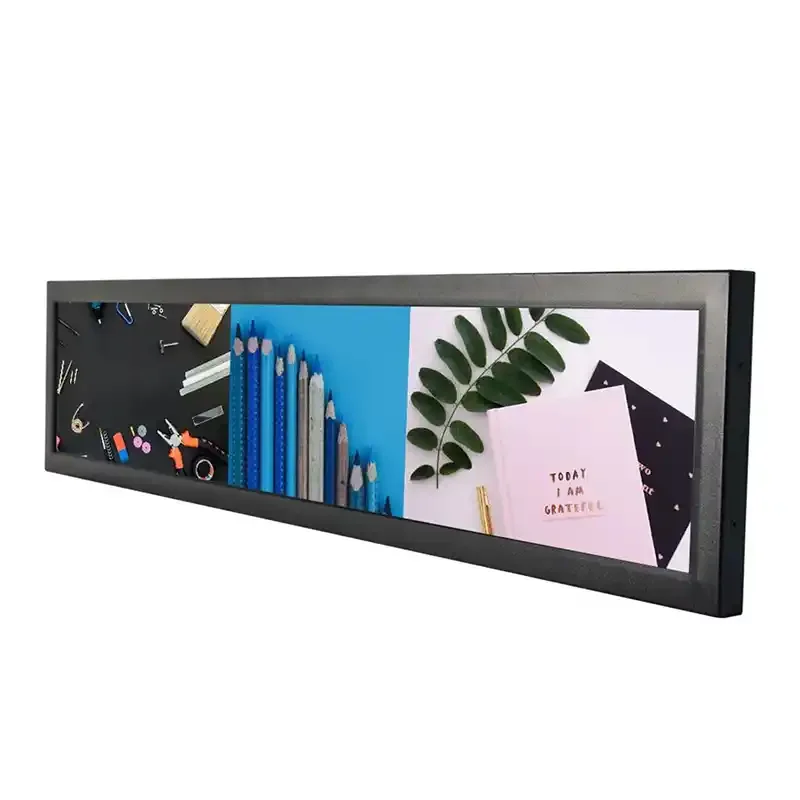

21.2inch Android HD Bar: USB Ad Smart Signage

BR21XCB-N Advertising Screen Overview

This device features a 21.2-inch high-definition liquid crystal display with a resolution of 1920x360 pixels and brightness of 500 cd/m². It uses an WLED backlight source and has a lifespan of 30,000 hours. The contrast ratio is 1200:1 and it supports a frame rate of 60 Hz. The color depth is 16.7M , 72% NTSC.

The system runs on Rockchip PX30 Quad core ARM Cotex-A35 processor clocked at 1.5GHz and comes with 1GB DDR3 RAM (selectable between 1GB/2GB) and 8GB built-in storage (selectable between 8GB/16GB/32GB/64GB). It supports external storage up to 64GB TF card. It supports wireless network connectivity via Wi-Fi and Bluetooth V4.0. The interface includes 1 micro USB (OTG), 1 SD card, and 1 Type-c (DC 12V power supply). The operating system is Android 8.1.

The power consumption is ≤21W and the voltage is DC 12V. The net weight of the device is less than 2.1kg.

The working environment temperature should be between 0°C~50°C with humidity ranging from 10%~85%. Storage environment temperature should be between -20°C~60°C with humidity ranging from 5%~95%.

The device meets CE and FCC certification standards and comes with a warranty of 1 year. Accessories include adapters and wall mounting plate.

Product feature

• LCD HD display

• Support 7*24 hours work


• Single player


• The APK starts automatically
