P5 indoor led screen Small pitch and high brightness

Name: P5 indoor led screen Small pitch and high brightness
Brand: REISSOPTO
Availability: InStock

IF-S Series

This indoor LED screen offers a small pixel pitch and high brightness, ensuring sharp image clarity, vivid color performance, and smooth, stable visuals.

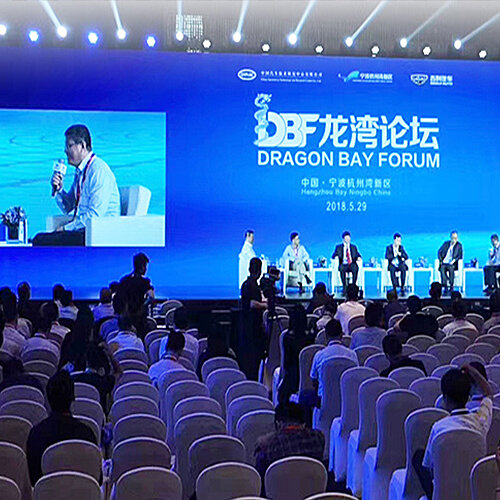

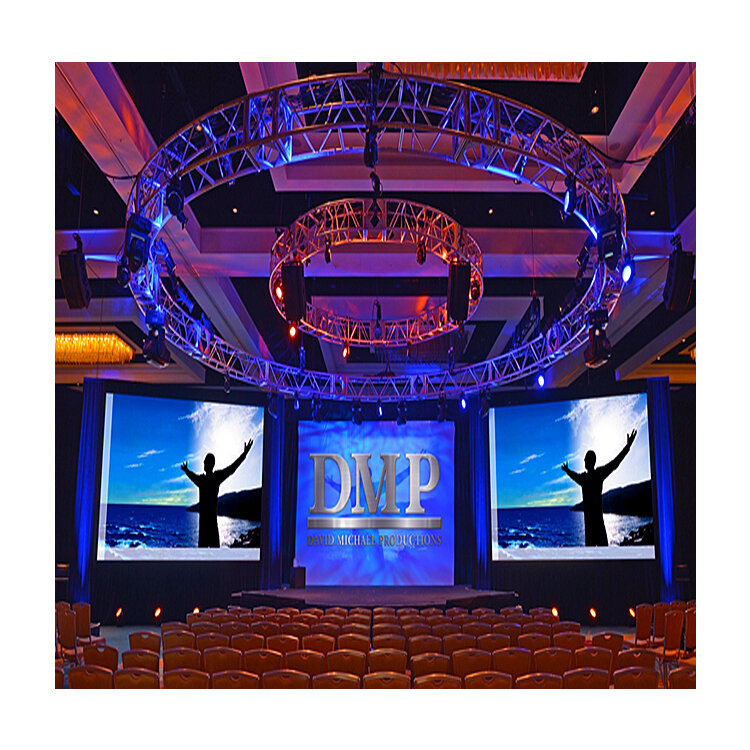

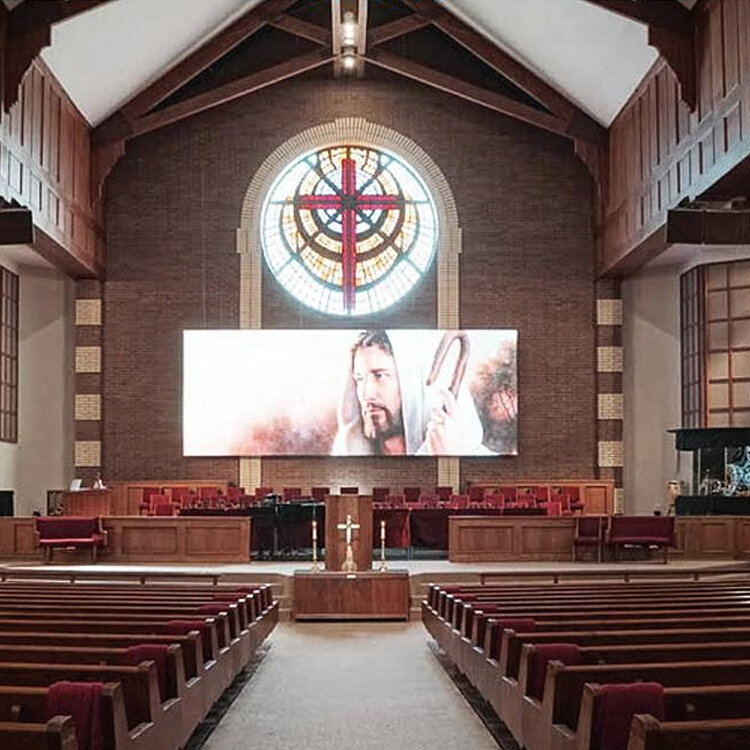

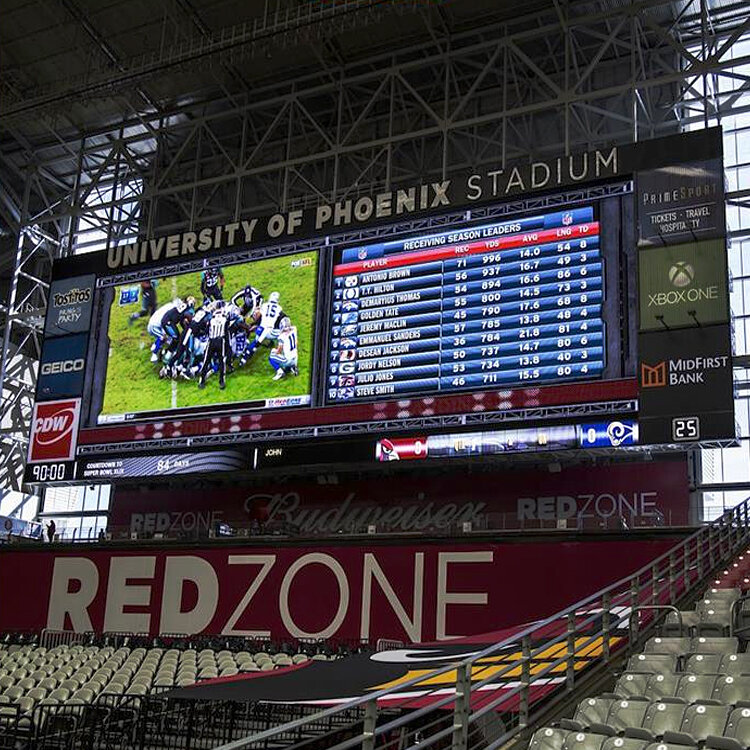

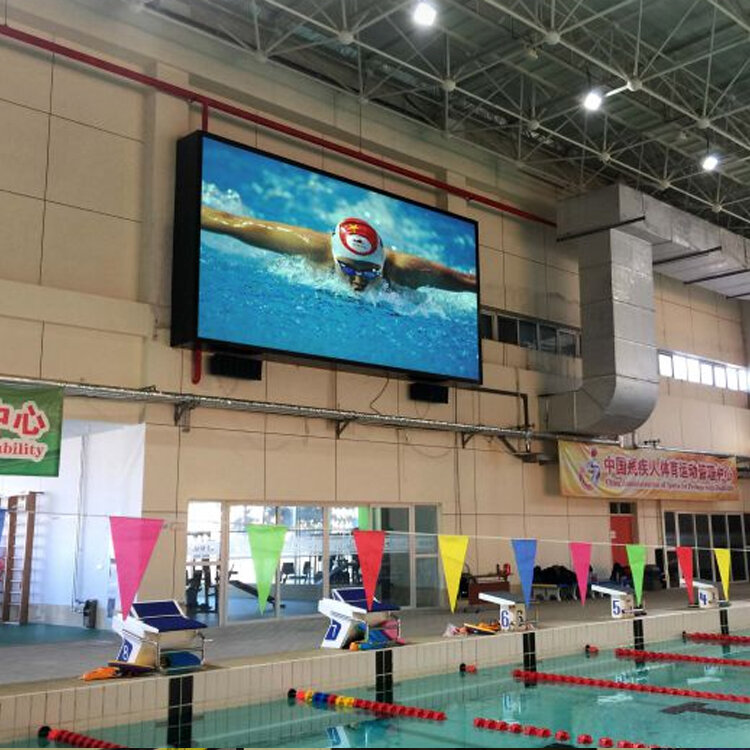

Widely used in indoor settings such as conference halls, shopping malls, control rooms, lecture theaters, and exhibition centers where large, high-clarity visual displays are needed for presentations, advertising, or real-time monitoring.

If you need to customize other scenes, please contact customer service!

Get a quote Set OEM

Indoor LED display Details

What is a P5 Indoor LED Screen with Small Pitch and High Brightness?

A P5 indoor LED screen is designed with a 5mm pixel pitch, allowing for decent image clarity and stable performance in medium- to large-sized indoor environments. The balanced resolution makes it suitable for viewing from moderate distances while maintaining smooth visuals.

Incorporating high brightness, this screen ensures that content remains visible and vibrant under various indoor lighting conditions. It offers a reliable display solution for scenarios that require consistent image quality and dependable operation.

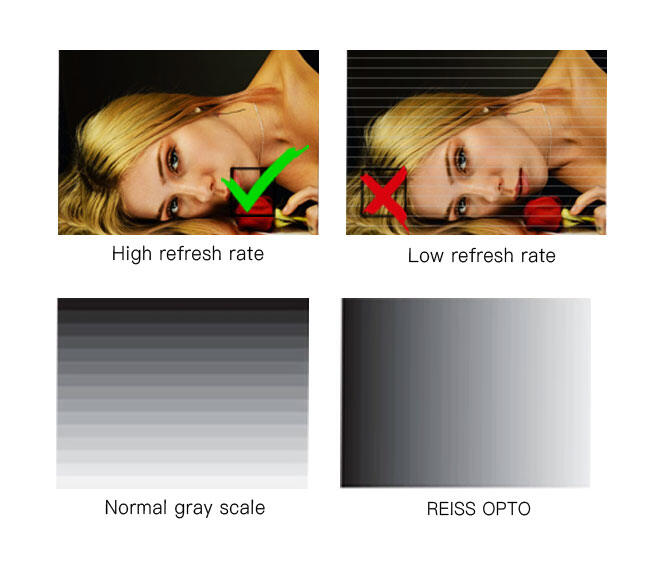

Low Brightness and High Grayscale

The SMD Encapsulation technology with High Refresh Rate and High Grey Grade with Reliable Driving IC. Unit Indoor Fixed LED display
has vivid and smoother pictures when in use. Compared with outdoor fixed LED display, indoor fixed LED screen has a lower brightness.

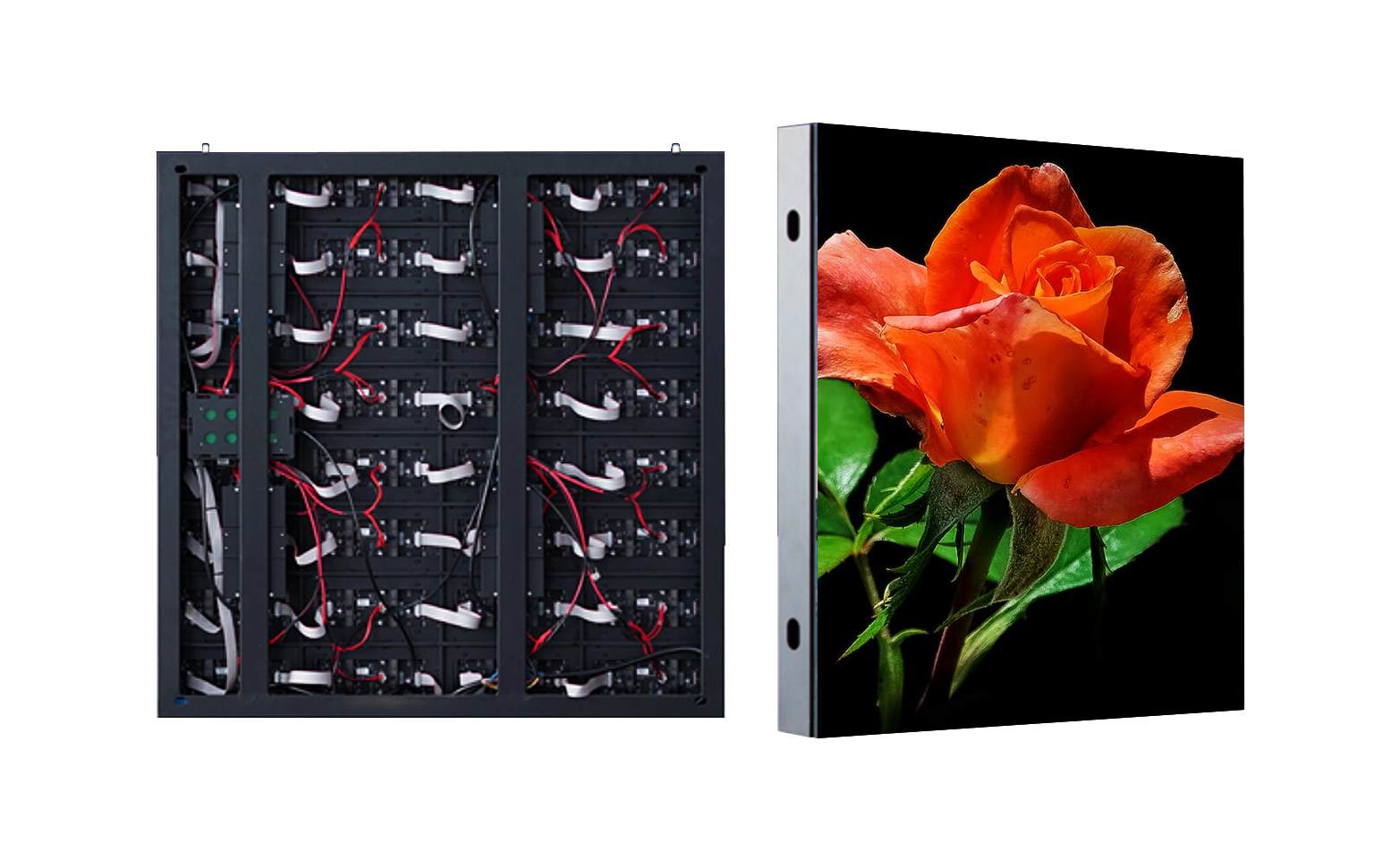

Uniform color, High contrast, Beautiful Picture

As the REISSOPTO first standard indoor fixed LED display. Its stability not only has obtained customers’ reputation but also has been highly praised and appreciated by other led display manufacturers.

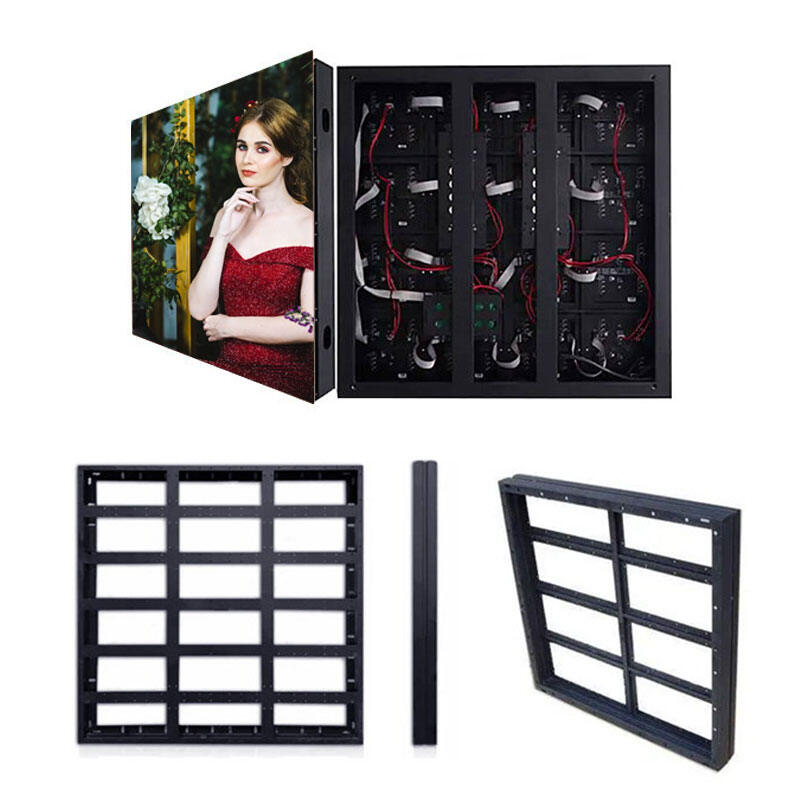

High Efficieny Cooling

With 4 aerofoil fans in each cabinet. REISSOPTO indoor fixed series LED display can cool immediately when in use.

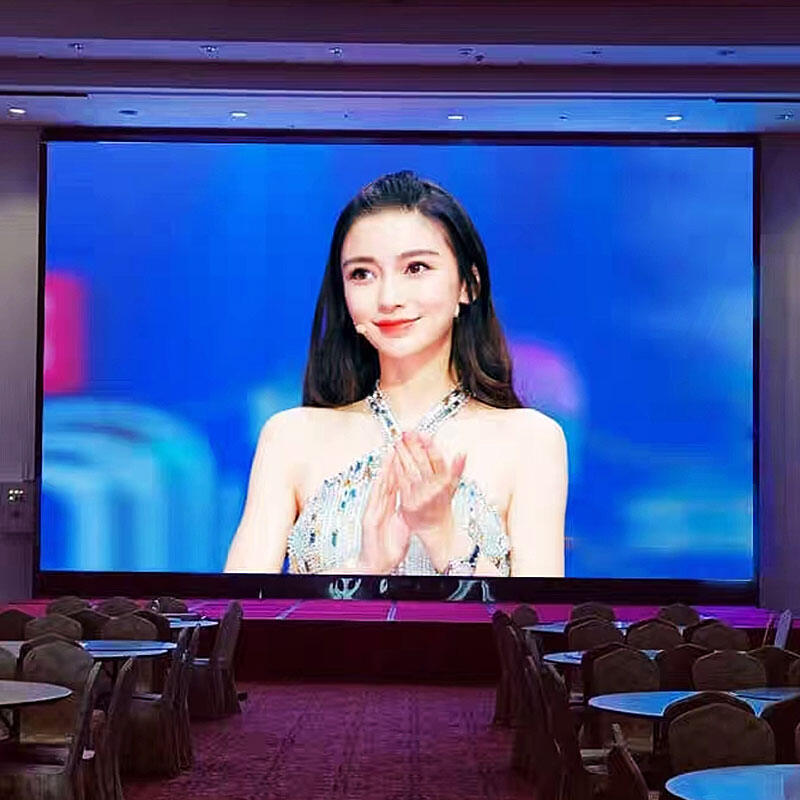

Seamless, No gaps

Fine standard cabinet with no obvious gaps between the cabinets. Non-deformability function keeps the screen in good shape and smoothly.
Using dot-to-dot calibration technology makes the image clearer and the layering stronger.

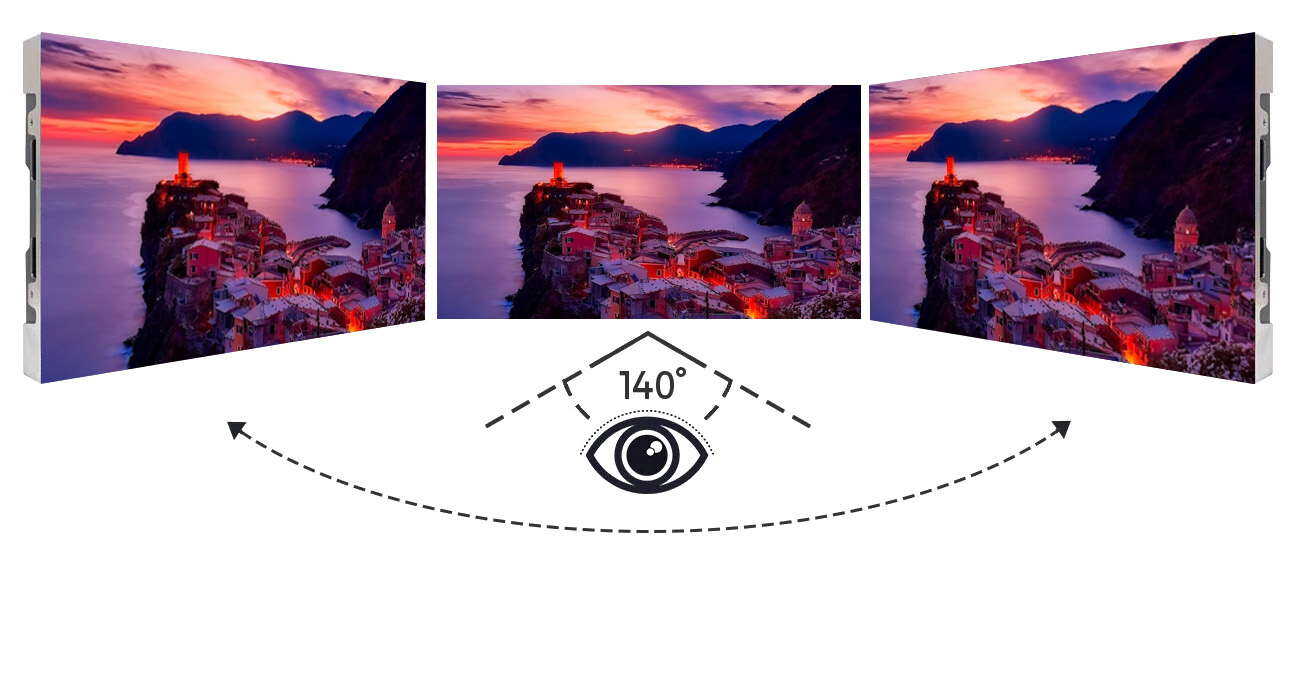

Super Wide Viewing Angle

Support fixed installation for advertisement, adding flying bar, connectors and fast lock for rental installation,
adding rubber cushion and bracket for perimeter installation LED display.

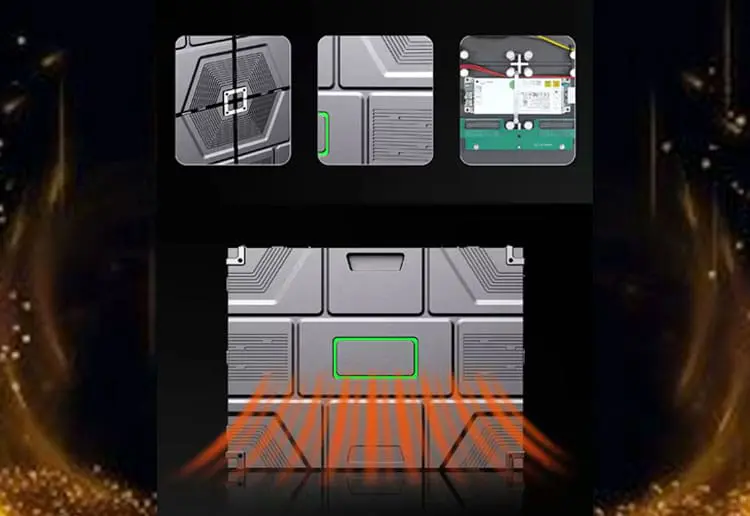

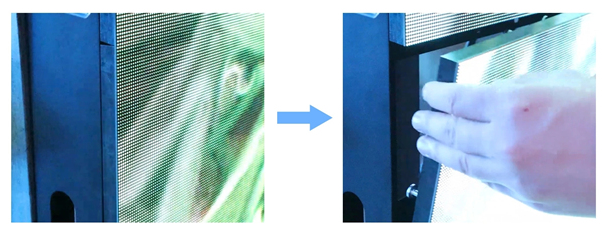

Magnetic module design, front maintenance

Module,receiving cards and power supplles can be malntained front, no maintenance channels needed.

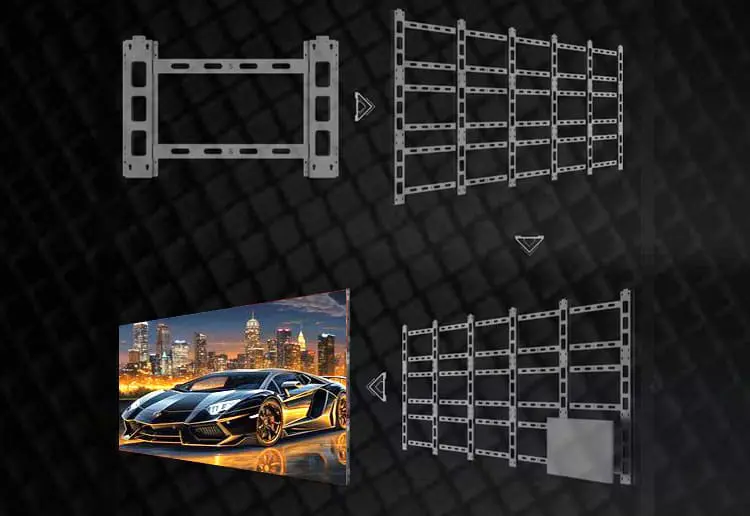

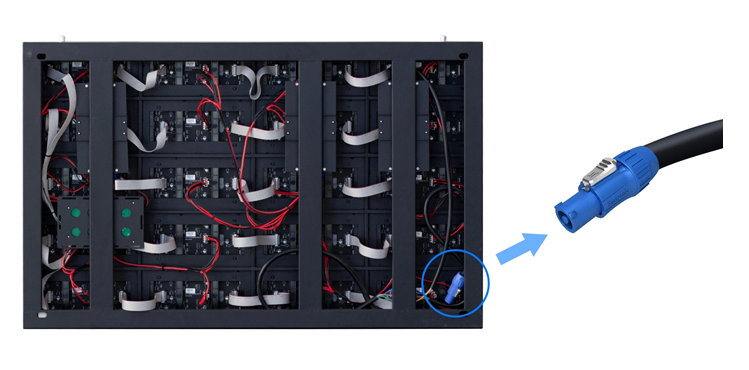

Easy installation

Easy installation with connector design.
Saving about 1/3 installation time.

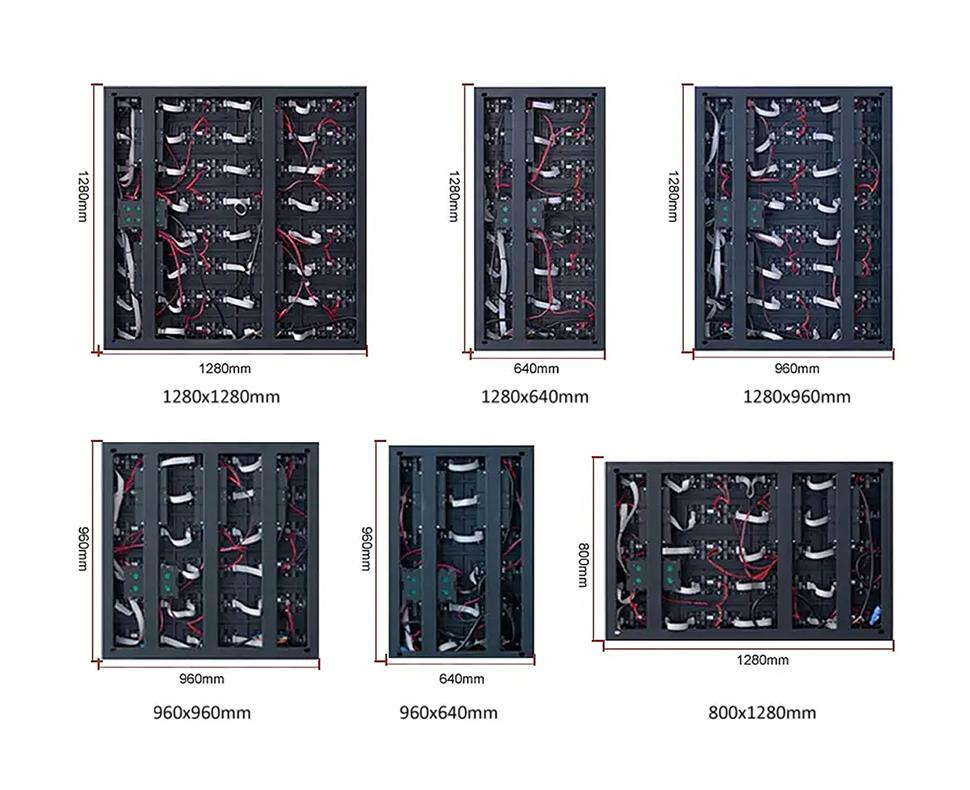

Panel Size

We can customize different slzes according to customer requlrements.

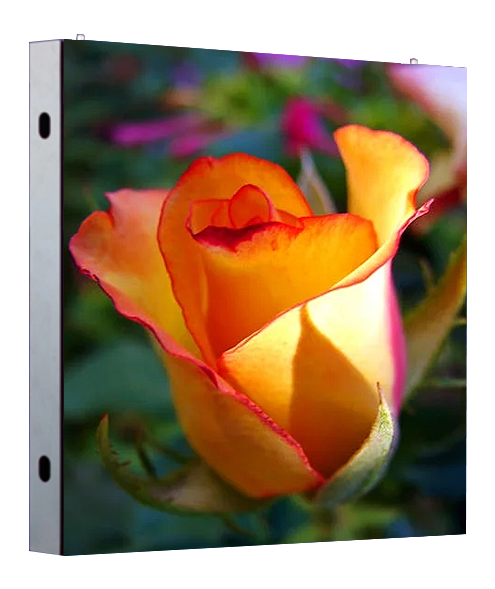

LED Video Wall for Ultra Visual Performance

Our Indoor LED video wall is with extraordinary performance. We use high-quality black SMD LED with great PCB design, and the screens gain excellent features as follows: Long lifespan, excellent white balance, amazing color uniformity, ultimate refresh rate (3,840Hz-7,680Hz), high gray scale (14bits-24bits) & high color contrast ratio.

Item	P2.5	P3	P4	P5
Pixel Pitch	2.5mm	3mm	4mm	5mm
LED Type	SMD2020	SMD2020	SMD2020	SMD2020
Module Resolution	128dots × 64dots	64dots × 64dots	64dots × 32dots	64dots × 32dots
Driving Mode	1/32scan	1/32scan	1/16scan	1/8scan
Module Pixels	8,192dots	4,096dots	2,048dots	2,048dots
Module Size	320mm × 160mm	192mm × 192mm	256mm × 128mm	320mm × 160mm
Cabinet Size	640mm × 640mm	768mm × 768mm	768mm × 768mm	960mm × 960mm
Cabinet Resolution	256dots × 256dots	256dots × 256dots	192dots × 192dots	192dots × 192dots
Pixel Density	160,000dots/㎡	111,111dots/㎡	62,500dots/㎡	40,000dots/㎡
Minimum Viewing Distance	≥2.5 m	≥3m	≥4m	≥5m
Brightness	800nits～1,200nits	800nits～1,200nits	800nits～1,200nits	800nits～1,200nits
IP Grade	IP43	IP43	IP43	IP43
Refresh Rate	3,840Hz～7,680Hz	3,840Hz～7,680Hz	3,840Hz～7,680Hz	3,840Hz～7,680Hz
Gray Scale	16bits～24bits	16bits～24bits	16bits～24bits	16bits～24bits
Viewing Angle	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°	H:160° / V:160°
Maximum Power Consumption	560W/㎡	560W/㎡	560W/㎡	560W/㎡
Average Power Consumption	160W/㎡	160W/㎡	160W/㎡	160W/㎡
Input Voltage	AC110V～AC220V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz	AC220V～AC110V @ 50Hz / 60Hz
Operating Temperature	﹣40℃～65℃	﹣40℃～65℃	﹣40℃～65℃	﹣40℃～65℃
Operating Humidity	10%～90%	10%～90%	10%～90%	10%～90%
Cabinet Material	Iron / Aluminum	Iron / Aluminum	Iron / Aluminum	Iron / Aluminum
Cabinet Weight	55kg/㎡ or 45kg/㎡	55kg/㎡ or 45kg/㎡	55kg/㎡ or 45kg/㎡	55kg/㎡ or 45kg/㎡
Operating System	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)	Windows (Win7, Win8, etc.)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
