LED Dance Floor Panel | Interactive & Waterproof LED Floor Tiles

Name: LED Dance Floor Panel | Interactive & Waterproof LED Floor Tiles
Brand: REISSOPTO
SKU: SKU-24
Availability: InStock

RDF-A Series

LED dance floor panels are deployed worldwide across events, hospitality, and entertainment industries. Common applications include wedding and event stages, nightclubs and lounges, concerts and festival staging, corporate exhibitions, hotels and banquet halls, photo and video studios, and interactive show installations. Their durability and safe load-bearing performance make them equally suited to small boutique venues and large-scale international productions, supporting both permanent installations and rental & touring setups.

Get a quote Set OEM

LED Dance Floor Details

An LED dance floor panel is a modular, load-bearing LED display tile installed on the ground to render high-resolution video, patterns, and interactive effects underfoot. Built on a high-strength aluminum frame with an anti-slip tempered-glass surface, each tile supports 1000–1500 kg/㎡ and delivers RGB brightness of 1200–1500 nits. Available in pixel pitches from P2.6 to P6.25, the panels combine seamless splicing, waterproof options (IP54/IP65), and quick-lock installation—engineered for professional venues and frequent-use, high-traffic environments.

Vivid RGB Lighting Effects

Rich color transitions, chasing lights, gradients, and programmable animations.

High Load-Bearing Strength

Reinforced frame supports 800–1000 kg/m², suitable for dancers, performers, props, and equipment.

Anti-Slip Tempered Glass

Durable, scratch-resistant, and safe even in high-traffic environments.

Modular Quick-Lock System

Easy setup and dismantling, ideal for touring and rental companies.

Video Playback Support

Upgrade to full video LED panels for animation, logo, and video display.

Customizable Tile Sizes

Available in 500×500 mm, 500×1000 mm, and custom configurations.

Stable Control System

Compatible with DMX, Novastar, or video controllers for complete show integration.

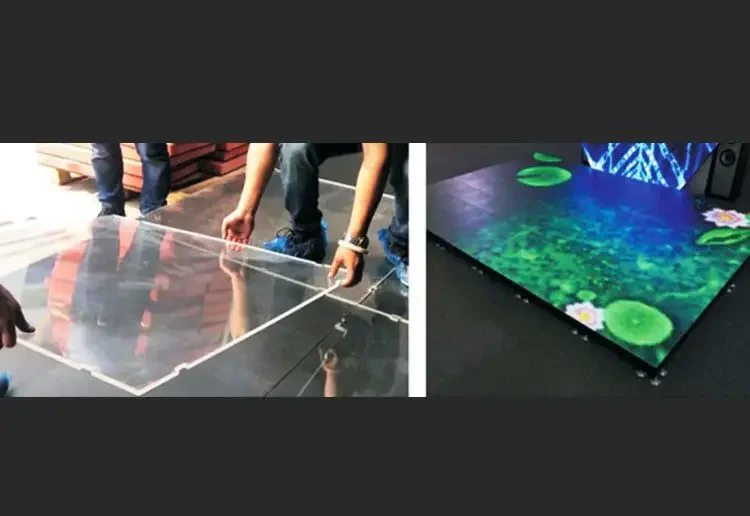

Reliable Heat Management System

Built-in thermal design ensures stable performance and extends LED module lifespan.

Specifications

These specifications provide a clear overview of the panel’s pixel pitch, load capacity, brightness, and control system—helping you choose the ideal configuration for your event or installation needs.

LED Dance Floor Panel Parameters
Model *For more models, please consult customer service	P2.6	P3.91	P4.81	P6.25
Pixel Pitch	2.6 mm	3.91 mm	4.81 mm	6.25 mm
Tile Size	500×500 mm / 500×1000 mm / Custom splicing available
Tile Resolution (500×500 mm)	192×192	128×128	104×104	80×80
Pixel Density (dots/㎡)	147,456	65,536	43,264	25,600
Load Capacity	1000–1500 kg/㎡
Surface Material	Anti-slip tempered glass / PC optional
Grayscale	16 bit
Brightness	2000–5000nits (RGB) / up to 6000 nits (video models)
Refresh Rate	≥3840 Hz
Viewing Angle	160°/160° (H/V)
IP Protection Rating	IP54 indoor / IP65 outdoor optional
Input Voltage	AC 100–240V 50/60Hz
Working Temperature	-20℃ – +60℃
Working Humidity	10%RH – 90%RH
Installation Method	Quick-lock / Magnetic installation
Maintenance	Front or rear service (model dependent)
Service Life	100,000 h
Control System	DMX / NovaStar / Colorlight / PC controller (optional)
Certification	CE, RoHS, FCC, ETL, UL, ISO9001
Note	The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service.

Applications of LED Dance Floor Panels

LED Dance Floor Panels are ideal for the following environments:

Event & wedding stages
Clubs, lounges & entertainment venues
Corporate events & exhibitions
Concerts & festival staging
Photo & video studios
Rental production companies
Hotels & banquet halls
Interactive show installations

These panels combine visual impact, high durability, and safe load-bearing performance, making them suitable for both small venues and large-scale staging environments.

Why Choose ReissOpto LED Dance Floor Panels?

Professional LED dance floor manufacturer with full OEM/ODM capability
High-load aluminum frame for structural stability
Custom pixel pitch, brightness, and surface options
Fast installation for rental & touring productions
Durable tempered-glass surface designed for long-term operation
Factory-direct pricing with strict QC procedures
Global delivery, engineering support, and project consulting
Optional upgrades: interactive sensors, video capability, waterproof models

ReissOpto’s engineering team ensures each LED floor tile meets the demands of professional venues and frequent-use environments.

Frequently Asked Questions

What is an LED dance floor panel?

An LED dance floor panel is a modular, load-bearing LED display tile installed on the ground to show high-resolution RGB video, patterns, and interactive effects underfoot. It combines an anti-slip tempered-glass surface with a high-strength aluminum frame for professional stage and event use.

How much weight can an LED dance floor panel support?

Each tile offers a load capacity of 1000–1500 kg/㎡, thanks to its reinforced aluminum frame and tempered-glass surface. This ensures safe operation for dancers, performers, and heavy foot traffic in high-use venues.

Are LED dance floor panels waterproof?

Yes. Standard indoor models are rated IP54, while IP65 waterproof versions are available for outdoor events, festivals, and humid environments—allowing reliable performance in both indoor and outdoor installations.

Do the panels support interactive effects?

Interactive LED dance floors are available as an optional upgrade, using sensors that respond to movement in real time. This creates dynamic, motion-triggered visuals ideal for nightclubs, weddings, product launches, and immersive show installations.

What pixel pitches and brightness are available?

LED dance floor panels are offered in pixel pitches from P2.6 to P6.25, with RGB brightness of 2000–5000 nits and up to 1800 nits for video models. Finer pixel pitches deliver sharper images for close-viewing and photo/video applications.

Can the panels be customized for my project?

Yes. As an OEM/ODM manufacturer, we customize tile size (500×500 mm / 500×1000 mm), pixel pitch, brightness, surface material, and waterproof rating. Custom splicing, control systems (DMX / NovaStar / Colorlight), and interactive upgrades are all supported.
